Elements of mechanical drawing (1911)

Jamison, Alpha Pierce. [from old catalog] · New York, J. Wiley & sons; · leaf 34

An illustration from Elements of mechanical drawing, 1911, leaf 34

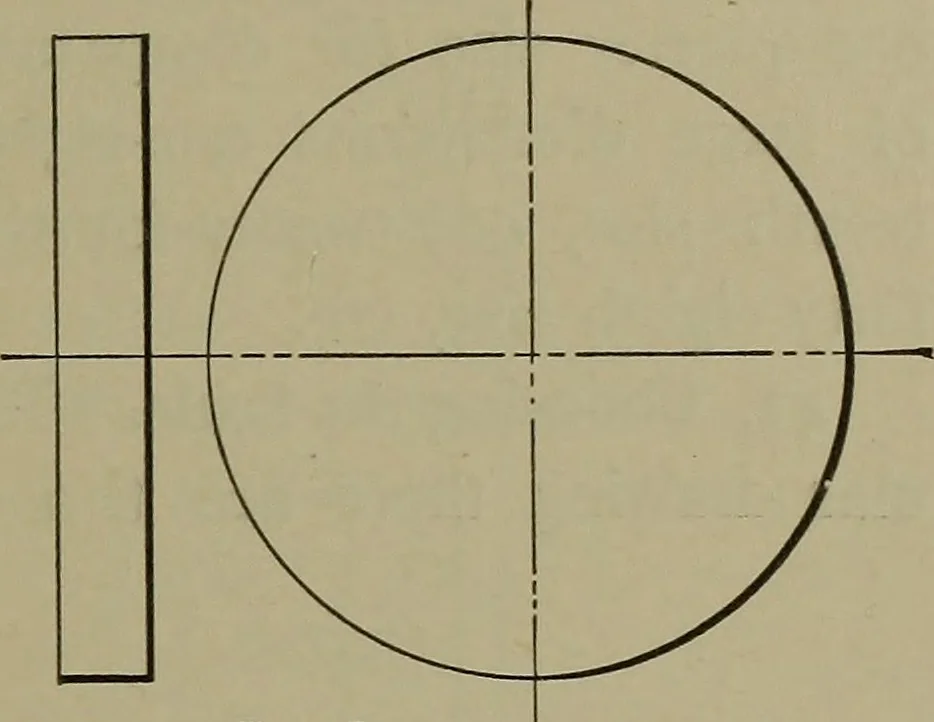

Fig. 7 Fig. 8 Lines of Uniform Weight. Shade Lined. A Mechanical Drawing of a Flat Plate.
