Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 308

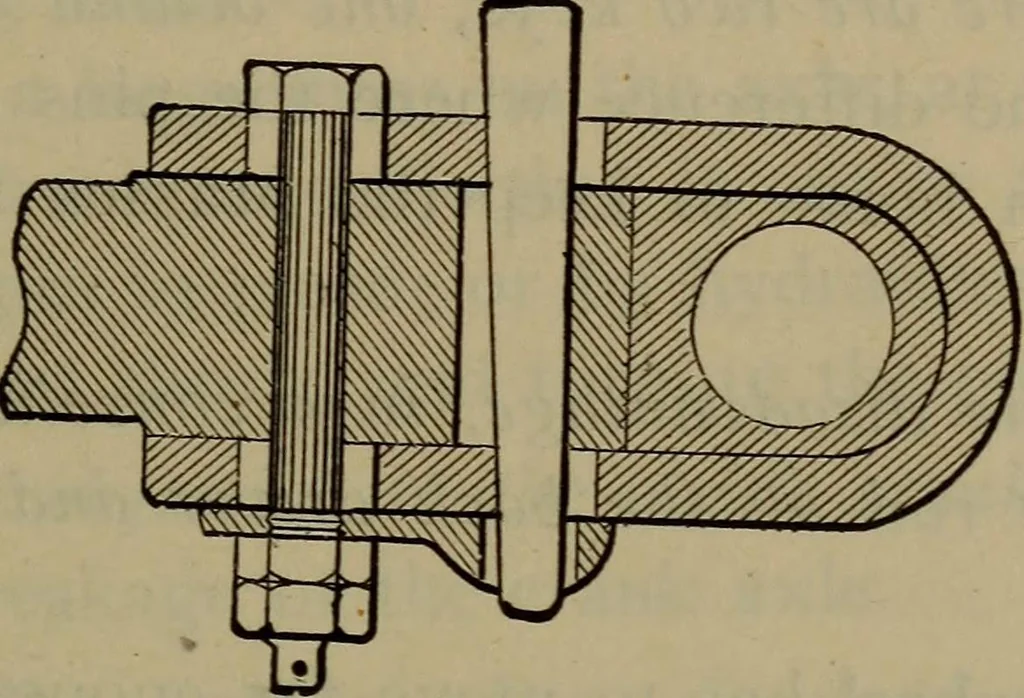

nto which is screwed the oil cup. Q. What is the advantage in fluting a rod?A. The metal is put in the top and bottom flanges, where itwill do more good than in the neutral axis. CONNECTING ROD. 301 Q. What is the reason that a loose brass will eause heatingas well as a tight one? A. Because of the… … Fig. 184. Strap Joint. A. The bolt must be loosened up first, else it cannot bekeyed up. 0. In what position and condition should the engine be forsetting up the front end main-rod brasses? A. On the lower quarter and no steam on, so that the rod
Locomotives
