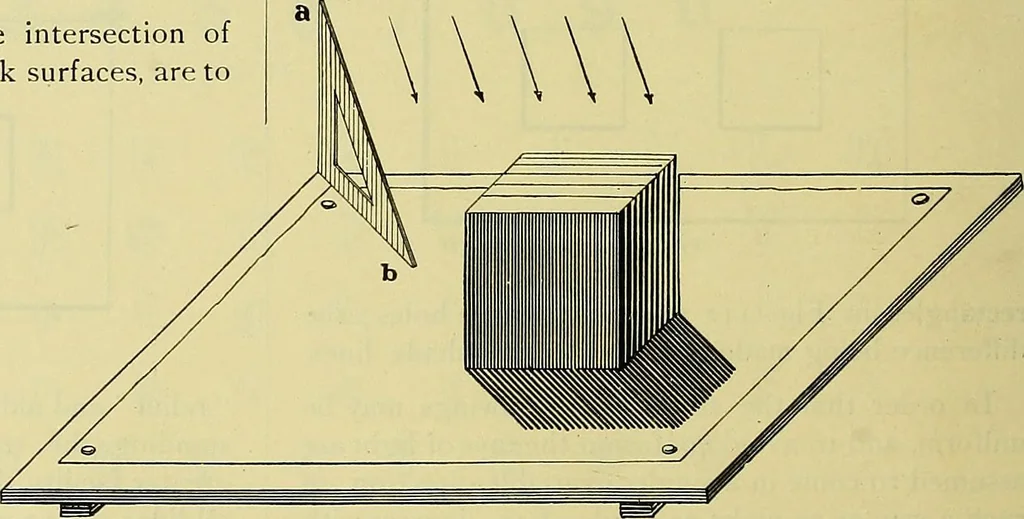

op view,abed, the rays of light fall upon the rear side ofthe object, b c, upon the top, abed, and upon theleft side, a b ; the light does not reach the front andright sides, a d, and, d c ; hence they are dark sur-faces ; the edges a d and d c, separating the lightsurface, abed, from the dark… … Fig. 113. ROGERS DRAWING AND DESIGN. 67 Figs. ii6 and 117 represent a hollow square- b prism ; its top view shows the shade lines a d andd c, that is, the right and bottom sides of the view c upon which the rays of light do not fall ; the lines b a d f ? u Fig. U4. a A f Fui. 116. 9 i : m 0 ^ m r 8…
