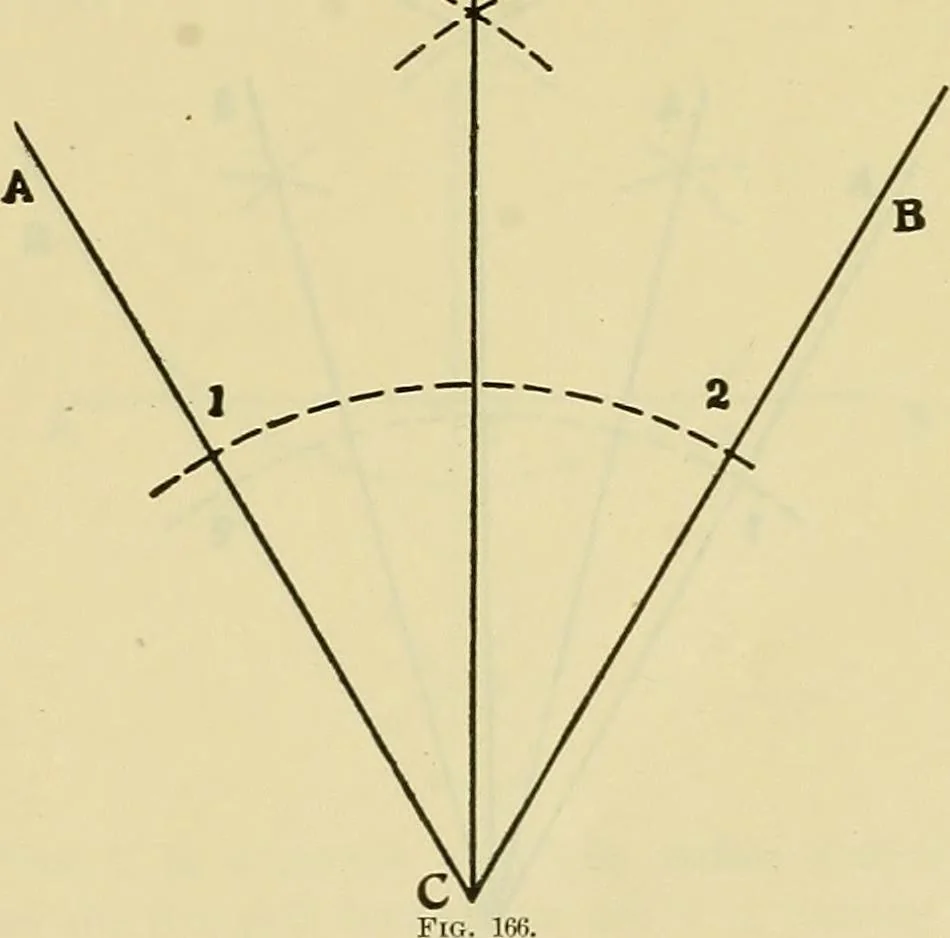

hat is, to divideit into two equal parts. Let AB be the given line, Fig. 165. // / / B ;c Fig. ]&5. From A as a center with a radius g-reater thanone-half of the given line AB, describe the arc i2, From B as a center, and with the same radius,describe an arc, cutting the former at i and 2 ;then… … Let ACB be the given angle. Fig. 166. With the vertex C as a center, and any radius,describe an arc cutting both sides of the given angleat I and 2. From i and 2 as centers, with anyradius, describe arcs cutting each other at 3. 88 ROGERS DRAWING AND DESIGN. Through this point of intersection draw…
