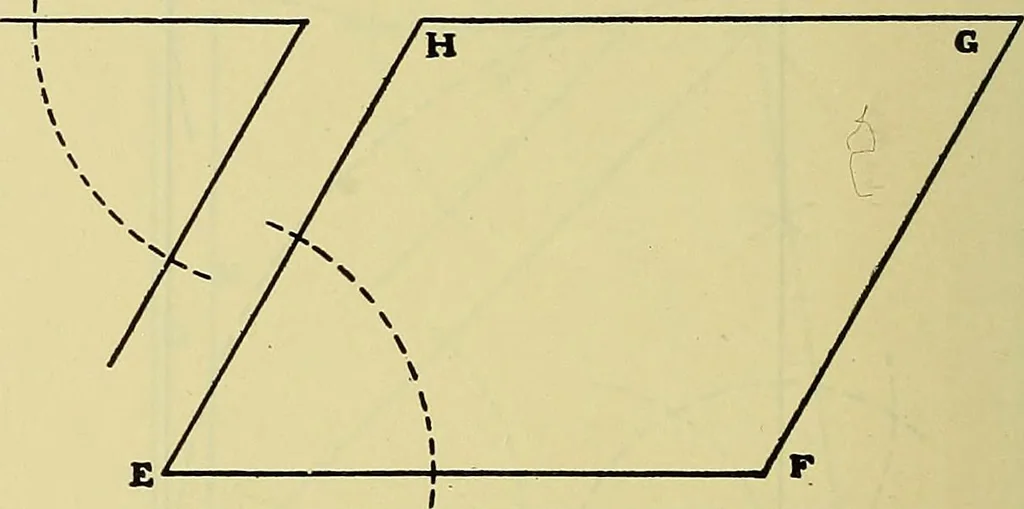

D B Fig. 183. From H and F as centers with radii equal to ABand CD describe arcs intersecting at G. Join thepoints FG and HG; then EFGH is the requiredrectangle. To construct a parallelogram when the sides andone of the angles are given. (See definition, page 31.) Let AB and CD be the given sides… … B Fig. 184. From the point F with a radius equal to CDand from H with AB as a radius describe arcs in-tersecting at G. Join HG and FG. EFGH is therequired parallelogram. ROGERS DRAWING AND DESIGN. 97 To construct a parallelogram when the sides andone of the diagonals are given. Fig. 185. Let CD be…
