A rudimentary and practical treatise on perspective for beginners : simplified for the use of juvenile students and amateurs in architecture, painting, etc., also adapted for schools and private instructors (1866)
Pyne, George · London : Virtue Brothers & Co. · leaf 91

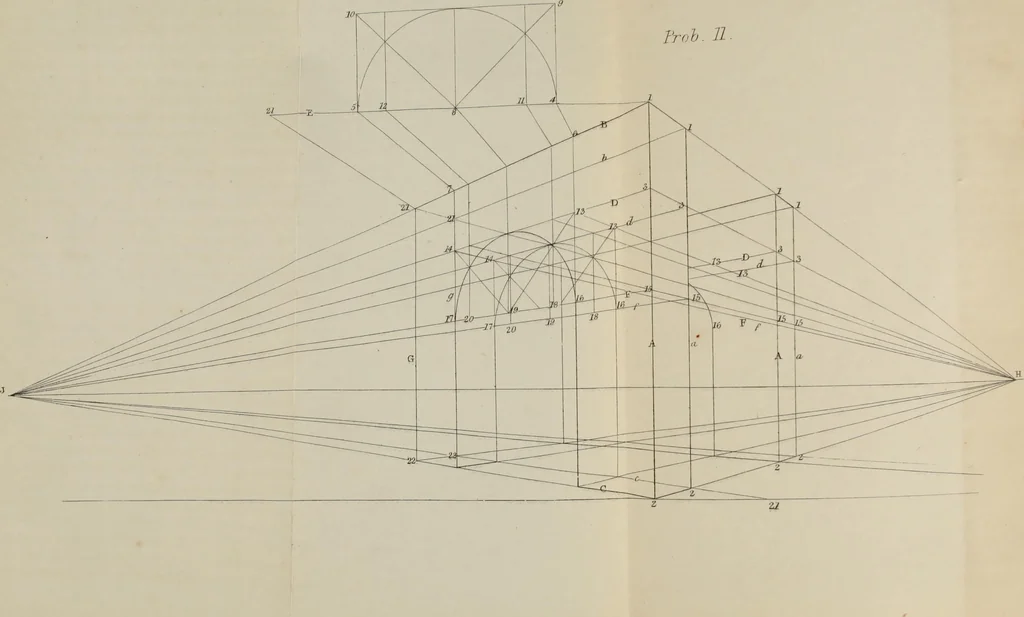

esents the geometrical length of the line8—5. Divide the line 8—11 into three equal parts (torepresent the width of the three panes of glass), and get theperspective positions of their points of division on the line8—5, from each of which points draw a perpendicular lineto the line 9—10. These will… … PERSPECTIVE FOR STUDENTS. 59 of division a line must be drawn to the vanishing point h.These lines, where they pass between the lines 8—9 and5—10, represent in perspective the horizontal lines of theframework of the window. The student will observe, that a portion both of the hori-zontal and…
Perspective
Internet Archive · Getty Research Institute · Public Domain Mark 1.0. Free to use for anything.
