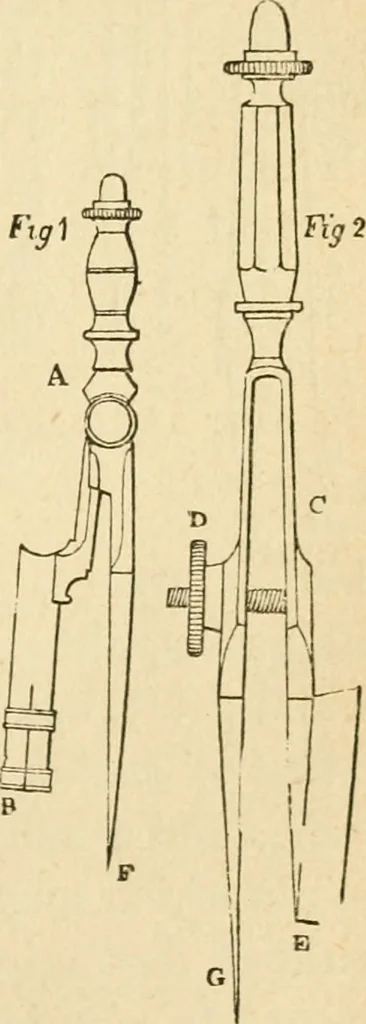

by the joint A,whilst in the other construction,Fig. 2, the corresponding points eand g are limited in their opening,the two blades carrying the points,being formed out of one solid pieceof steel, and tempered so as to form aspring at the upper part corresponding with the joint ain Fig. 1. The… … 74 ERECTION OF DWELLING-HOUSES. that could not be expected or scarcely attempted bythe construction of Fig. 1. The pen bows are represented in the annexed engrav-ing ; their construction is similar to the pencil bowslast described. In the pen point ofFig. 1, there is a second joint just belowletter…
