An illustration from Appleton's cyclopædia of drawing, designed as a textbook for the mechanic, architect, engineer, and surveyor, 1866, leaf 34

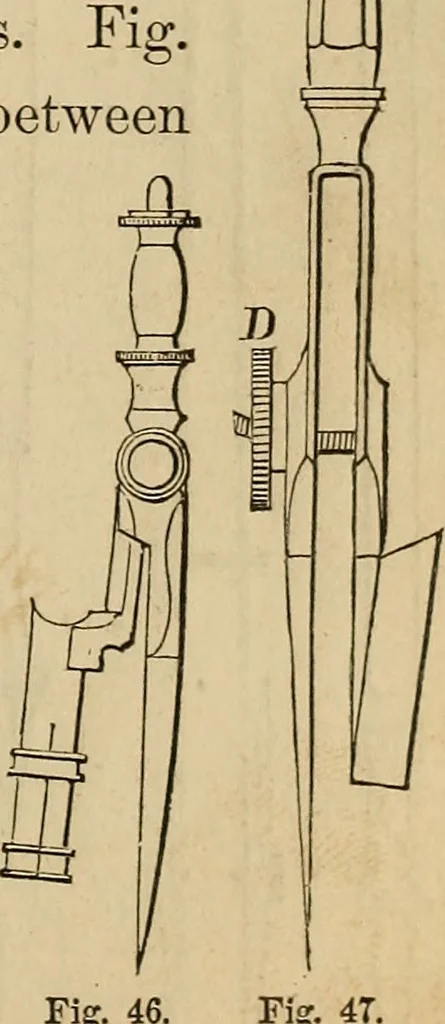

can be opened aconsiderable width by the joint, whilst in fig. 47, theopening is limited, the two blades or legs being formedout of one solid piece of steel, and tempered so as toform a spring at the upper part; the spring of the twoblades is then kept in obedience by an adjusting screwD, by which… … 14 DRAWING INSTRUMENTS.
