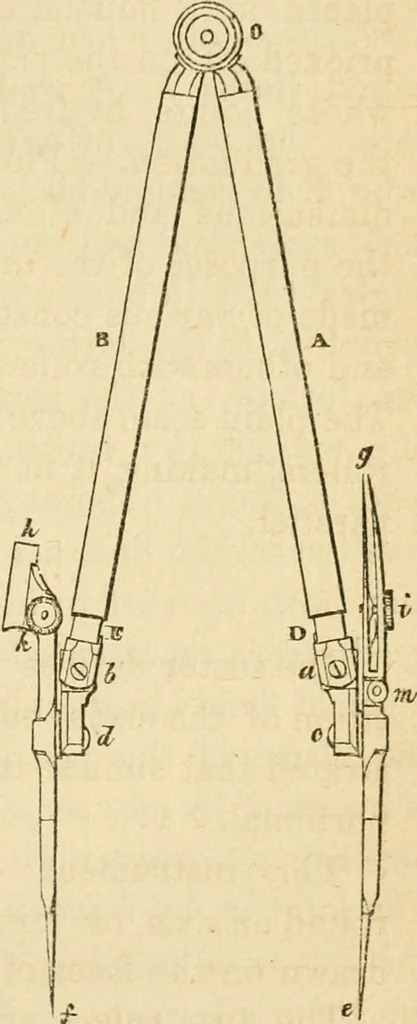

pendicular to thepaper, and consequently paral-lel to eacl other, at whateveropening the legs of the com-passes may be extendetl to. In our engraving, the pivots of the two point limbs/,& and e, g to the two carrying pieces, which are jointedto the tubes at a and b, also give the means of… … 76 ERECTION OF DWELLING-HOUSES. limbs can be turned upon these pivots so as to makethe points e and g, or / and h change places. By thissimple and ingenious contrivance, the draftsman, afterhaving used the two fine points e and /, for fixingwith precision the opening of the compass to his re-quired…
