Rudiments of the art of building : represented in five sections [...] for the use of architects, builders, draghtsmen, machinists, engineers and mechanics (1853)
Bullock, John · New York : Stringer & Townsend · leaf 28

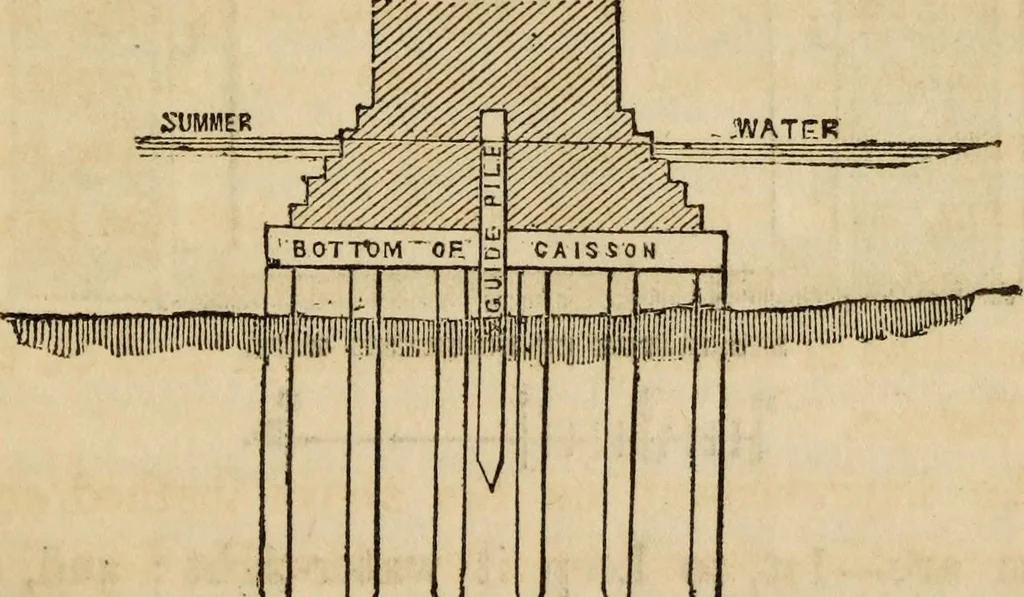

i I i ! j ! i I i IPont du Val Benoit at Liege, built a. d. 1842, which car-ries the railway across the Meuse, have been built on pilefoundations, in the manner here described. Fio;. 4. … V V V V V V23. Solid Foundations laid in Cofferdam.—lliere aremany circumstances under which it becomes necessary to 24 RUDIMENTS OF THE lay the bottom dry before commencing operations. This isdone by inclosing the site of the foundation with a water-tight wall of timber, from within which the…
Building
Internet Archive · Getty Research Institute · Public Domain Mark 1.0. Free to use for anything.
![An illustration from Rudiments of the art of building : represented in five sections [...] for the use of architects, builders, draghtsmen, machinists, engineers and mechanics, 1853, leaf 28](https://img.insideoutlibrary.com/img/1024/ia-rudimentsofartof00bull-28-2.webp)
