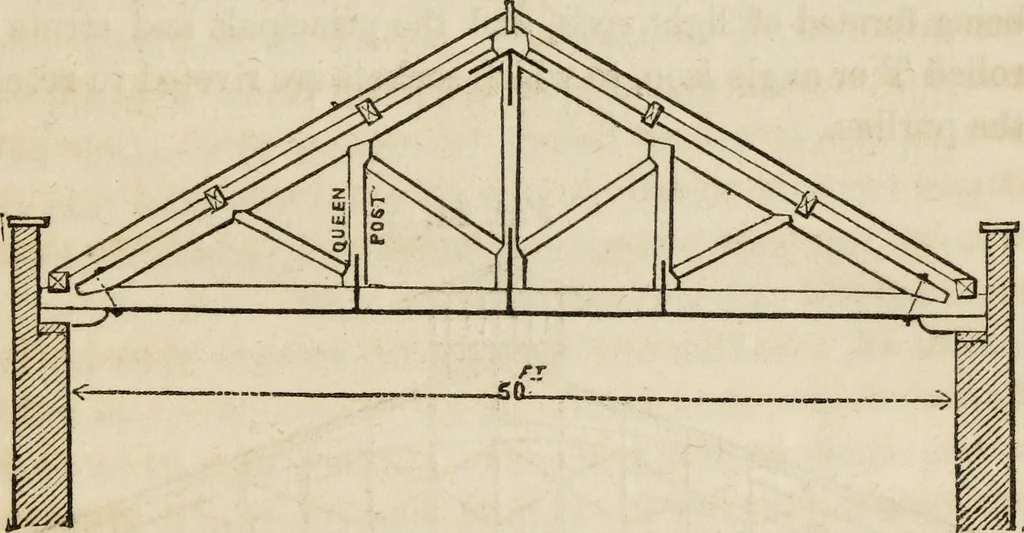

mon rafters but on a ;polc jplate^ the tie beams resting eitheron a continuous plate, or on short templates of wood orstone. 111. Where the span is considerable, the tie beam is sup-ported at additional points by suspension pieces called queenposts (fig. 52), from the bottom of which spring… … struts ; and, by extending this principle ad infinitum, wemight construct a roof of any span, were it not that a prac-tical limit is imposed by the nature of the materials. Some-times roofs are constructed without king posts, the queenposts being kept apart by a straining piece. This construc-tion…
