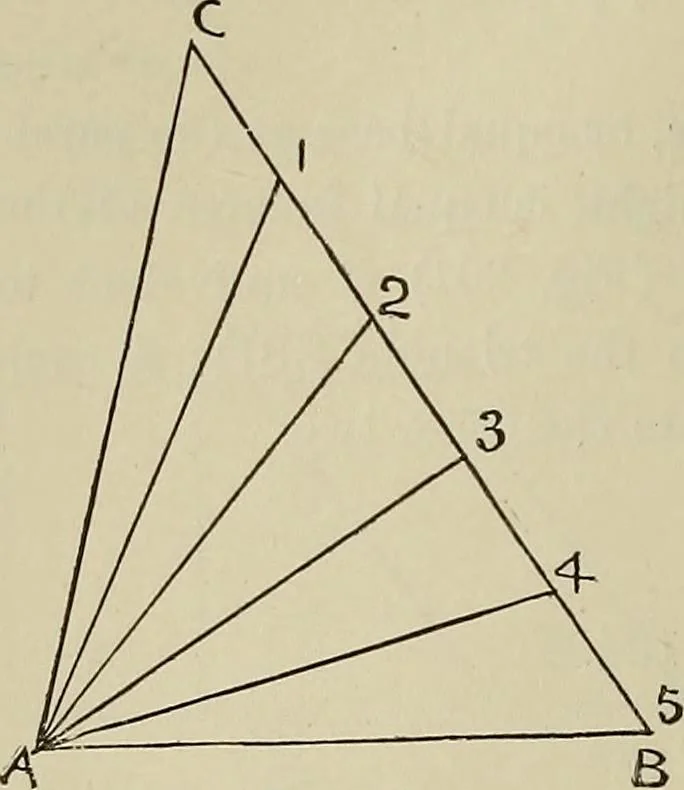

Tm. 203. Peoblem 125. To construct a rhoniboid equcd inarea to a given triangle ABC,V^ and having one of its angles equcd to given angle D. Bisect the line AB in E (Prob.1). From point C draw the lineCK parallel to AB (Prob. 4).At E construct the angle BEHequal to the given angle D (Prob.12). From… … Fig. 204. Problem 126. To divide a given triangle • ABCinto any numhcr of equalparts, for example five. Divide any side of the tri-angle into five equal parts (Prob.10), and draw lines to theopposite angle. We have nowfive triangles, and as they haveequal bases and equal altitudes,they must all be…
