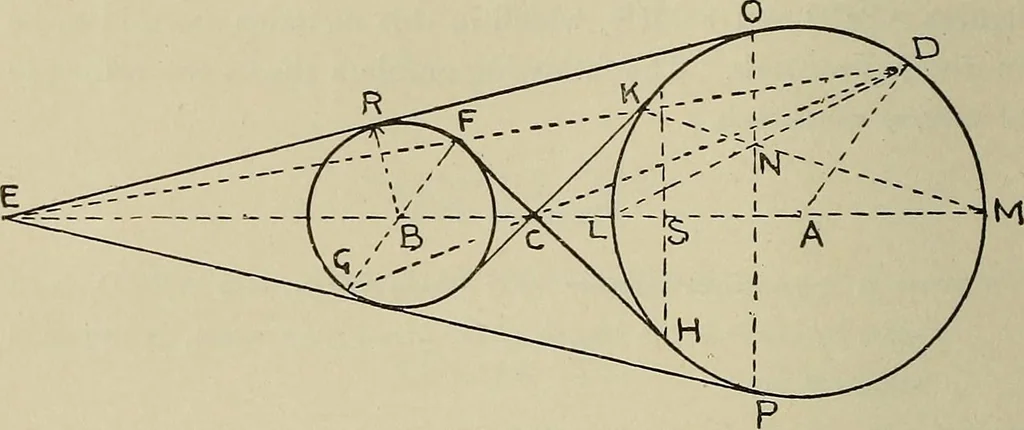

B, C, and D, which will give the points H, G, and E. Join KH,HE, EG, and GK. Then EGHK will be the trapezium required. Peoblem 174. To dravj a circle one-half the radius of a given circle,hij DIEECT and inveese similitude. Let A be the centre of the given circle. Take any con-venient point E.… … Fig. 277. radius, draw the circle required,similitude. This would be by direct To draiu it hy inverse similitude. Take any convenient point C, and draw a line from A throughC to B, making CB equal to one-half of AC. From C drawtangents to the given circle (Prob. 84) touching it in the pointsH and…
