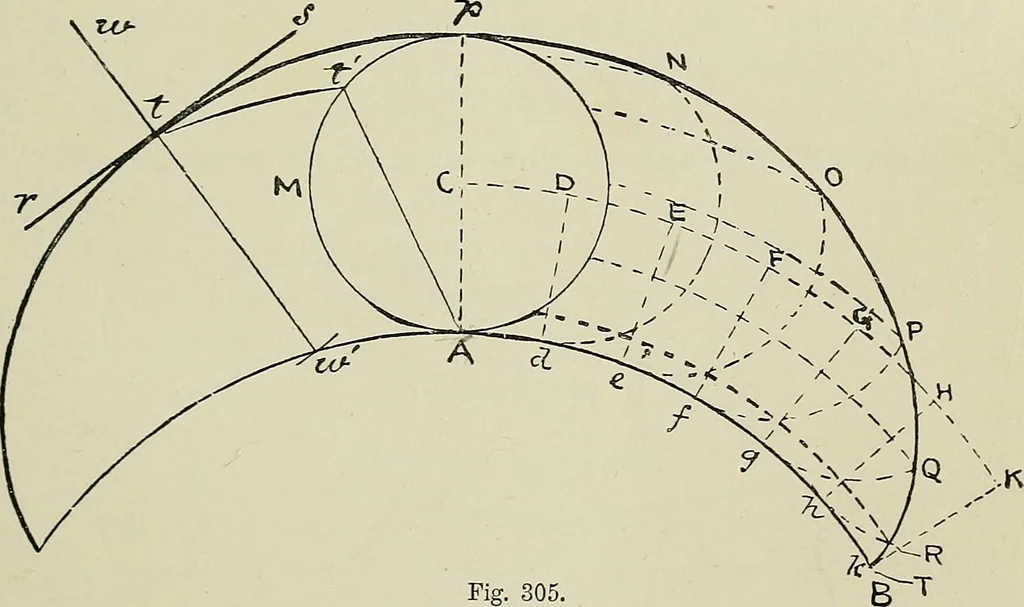

IDAL CURVES, ETC 169 line tt parallel to AB till it meets the circle E in t. Join tm.Draw tlie normal vjt parallel to tm, and the tangent rs at rightangles to it. Problem 195. To draw an cjjici/doid. Note.—The length of the arc of director is to the whole circleas the radins of the rolling circle… … Fig. 305. the generator. Make AB equal in length to half the rolling-circle AlNI^j), and divide it into any number of equal divisions,say six, d, e, f, g, h, and k (Prob. 14). Divide the semicircleinto the same number of equal divisions, and draw lines fromthese points, as well as from the centre…
