Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 228

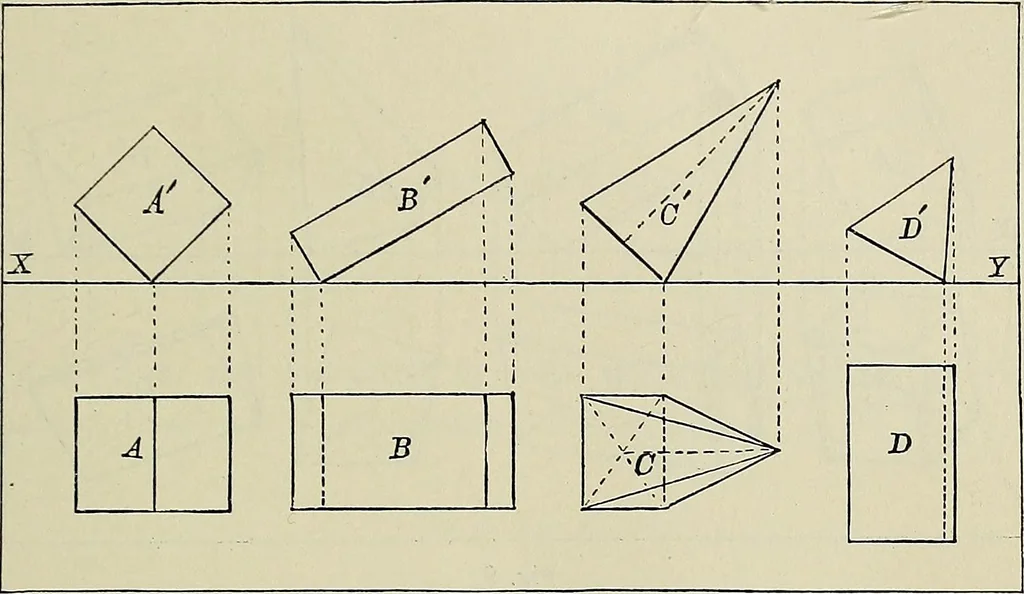

Fig. 6. Fig. 6 represents the same solids with their bases on the H.P.as before, but their sides are now inclined, to the V.P. XVII INTRODUCTION 207 Fig. 7 shows them with their fronts and backs parallel to theV.P., as in Fig. 5, but with their bases inclined to the H.P, … Fi^. 7. Fig. 8.—They are here represented inclined- tohoth the V.P.and H.P., but they still have one set of edges parallel to the H.P.
