Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 232

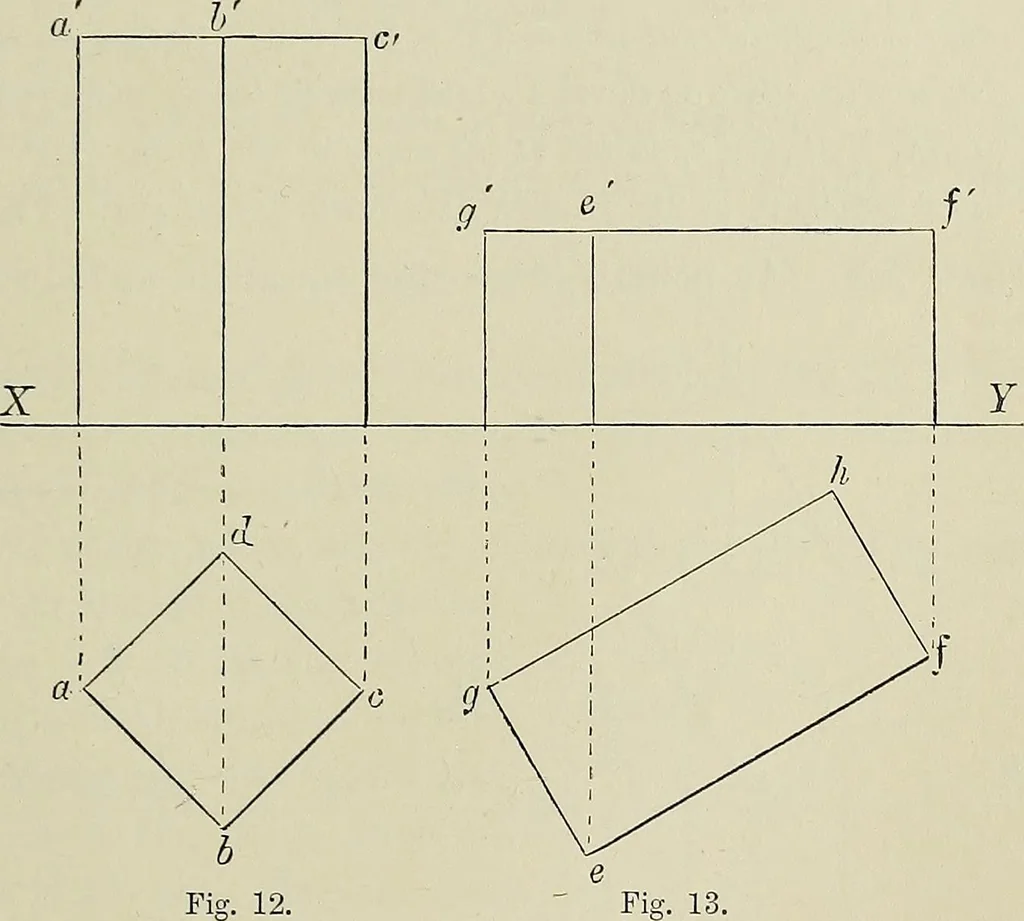

bove XY, and directly over the points a, h, and c. Join thetops of these perpendiculars, which completes the elevation. xviii simple solids in given positions to scale 211 Problem 4. To project the same solid lying on one of its longer faces on the H.P.ivitli its longer edges forming an angle of… … high above XY, immediately over the points g, c, and /. Jointhe tops of these perpendiculars, which completes the elevation.The student should now project the four solids illustrated inFig. 6, in the positions there shown, but to the following dimen-sions and scale:— A to have a base 5 X 5, to be 5…
Geometrical drawing
