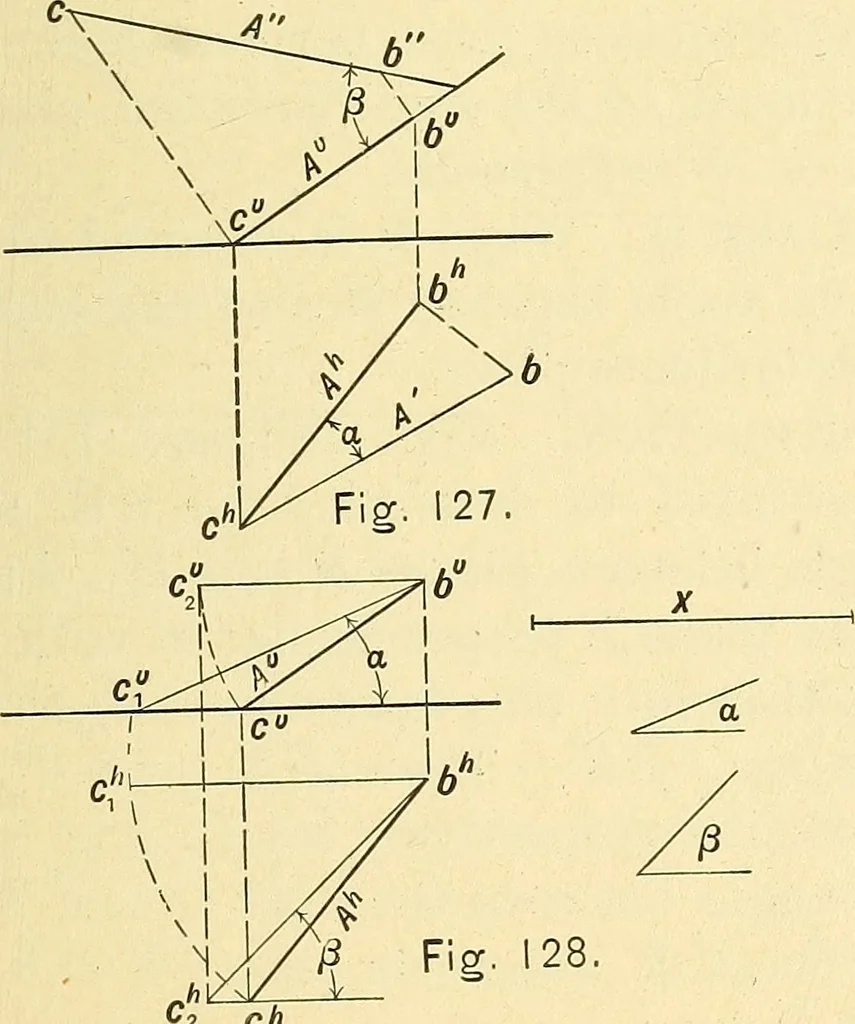

al axisthrough 5, all possible horizontal projectionsof line A will be drawn from b^ to a linethrough (?2 and parallel to GfL. But all pos- ANGLE BETWEEN PLANES 57 sible horizontal projections must be drawnfrom h^ to the arc e\e\ hence, tf^ the intersec-tion of this arc and the parallel through… … 83. To determine the angle between twoplanes. Principle. If a plane be passed perpendic-ular to the edge of a diedral angle, it intersectsthe planes of the diedral in lines, the anglebetween which is known as the plane angle ofthe diedral. The diedral angle between twoplanes is measured by its…
