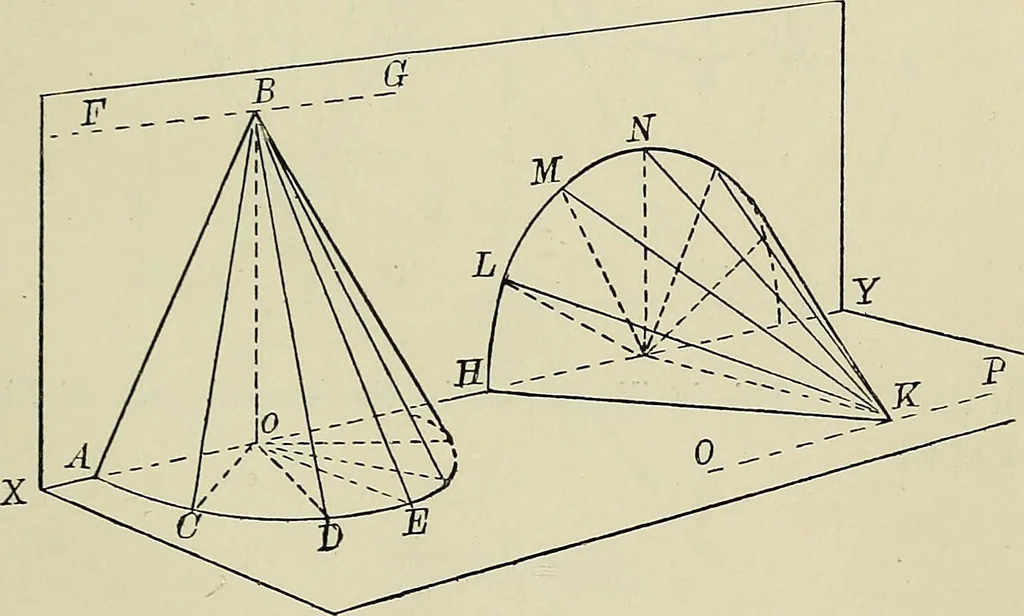

ll be the inclination of theline to the H.P. AB is the true length of the line, and is equalto AB. The Grreek letter 0 (theta) is generally used to express theinclination a line makes with the H.P., and the angle with theV.P. by <f> (phi). We shall be able to remember this better ifwe notice… … Fig. 93. represent a 60° set-square. If we revolve it on the line OB asan axis, the hypotenuse AB will describe a semi-cone againstthe V.P., and the lines AB, CB, DB, etc., will all form a constantangle with the H.P., viz. 60°, although the angle they form withthe Y.P. will vary with each position.…
