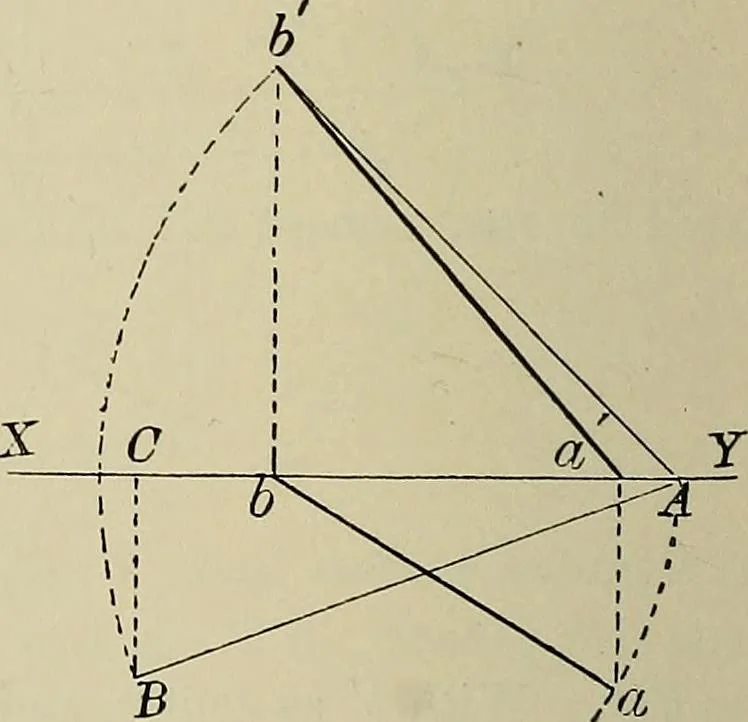

Fig. 96. Fig. 97. Peoblem 75. From the projections of a line, to find the angles it forms with ea^hplane, and its true length. Pig. 97. Let ah represent the horizontal projection, and ah the verticalprojection. Prom h draw the line hh, and from a draw the line ORTHOGRAPHIC PROJECTION 293 act, both…
