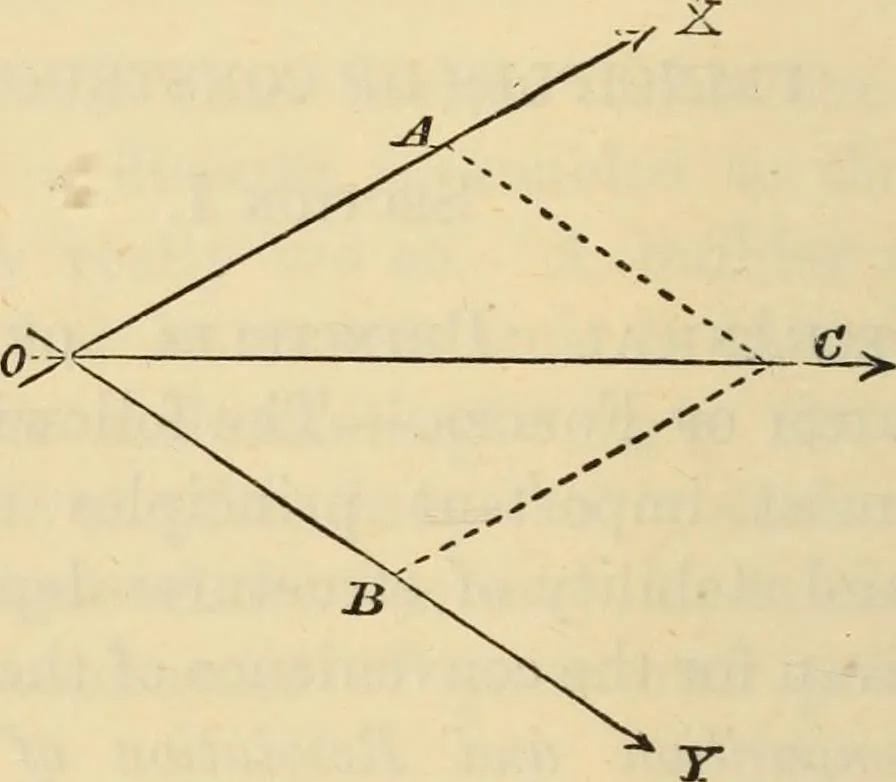

ection in the same line. When we thusfind a single force which is equivalent to two othersthe parallelogram of forces becomes a rule for the com-position of forces. F 2 100 HINTS TO YOUNG ARCHITECTS. Now the resultant oc may be found by trigonometrythus:— 00 = ^ OA^ + OB^ + 2 OA - OB COS. AOB. Its… … Fig. 18. particular notice of the architect, as in the thrusts oftwo arches or frames at right angles to each other.The solution is then simply by Euc. I. 47. where r represents resultant, p the force OA, and q theforce OB. For example, if p be 15 lbs. and q be 8 lbs.,then r2 ^ (15)2 _,. (g^)2 ^…
