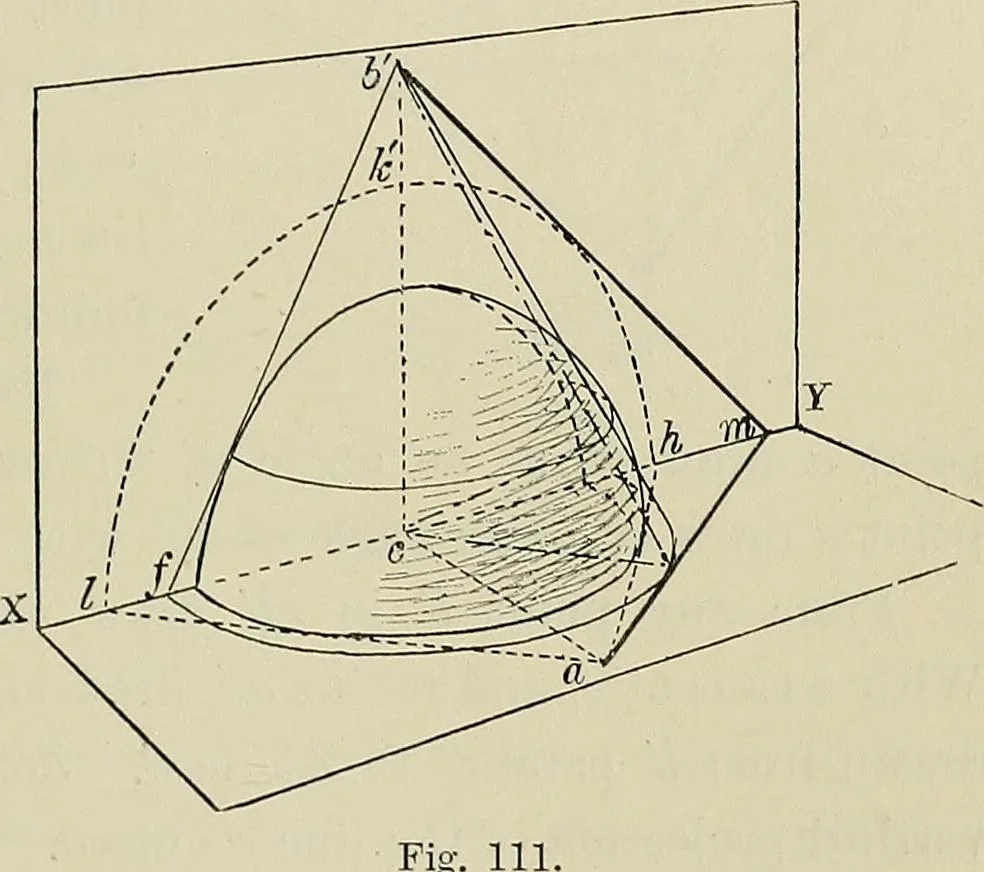

ill be moreeasily understood byreferring to the set-square B (Fig. 107). Let Op represent a line at right angles to on\ and perpen-dicular to the plane B. Then op is the horizontal projection,and op the vertical projection of this line (Op) ; and the H.T. mo,and the V.T. 7nn, are at right angles to… … Note.—The angles in this problem are the same as those 304 SOLID GEOMETRY CHAP. XXIII
