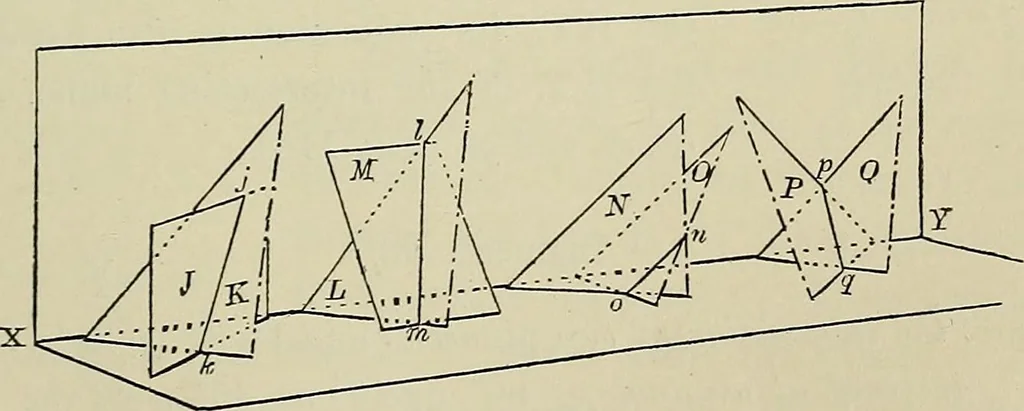

Fi?. 113. (Tig. 113), its trace will be where the Y. traces of the two planesintersect; if it is parallel to the Y.P., as no (Fig. 114), its trace … Fig. 114. will be where the H. traces of the two planes intersect; shouldit be inclined to both co-ordinate planes, as Im and_2:>g (Fig. 114),its traces will be at the intersection of both the H. and V. X ^o6 SOLID GEOMETRY traces of both planes; but if it is parallel to both planes of…
