Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 330

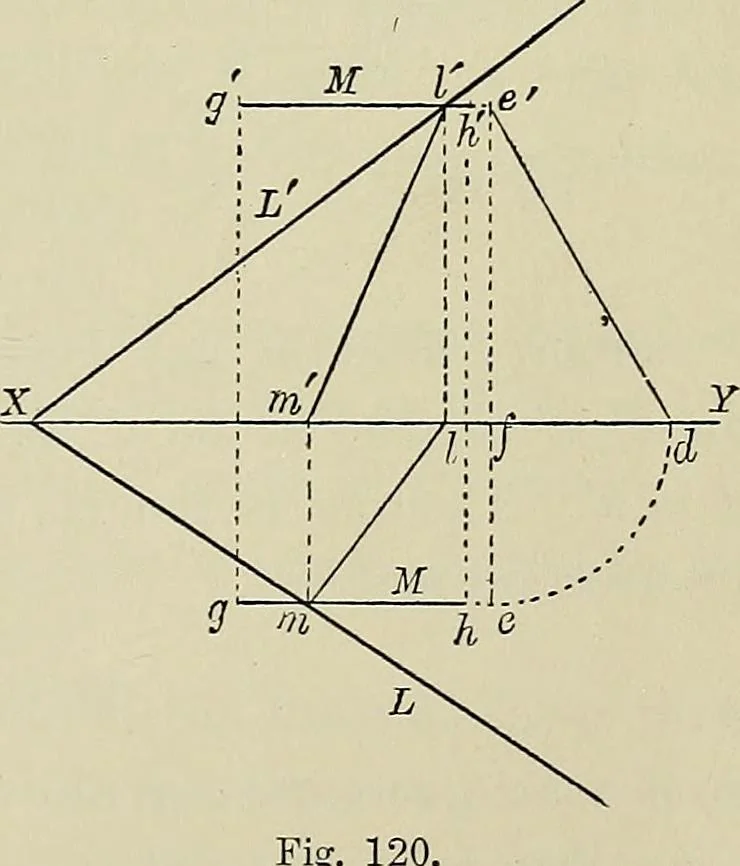

position draw theline gh 2^ long, parallel to XY,and the same distance from itas point e. Draw the projectorsgg and hJi till they meet a hori-zontal line drawn at the heightof point e. Then gh is the H.T., and gh the V.T. of the plane M. At the point m, where gh intersects the line L, draw… … 120. SOLID GEOMETRY Problem 91. Project the intersection of two planes N and 0, hotli inclined to theright: N to he an indefinite plane, inclined at an angle of71° with the H.P. and 29° with the V.P. ; 0 to he alsoindefinite and inclined oJ an angle of 60° loith the H.P.and 50° ^vith the V.P. ; the…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
