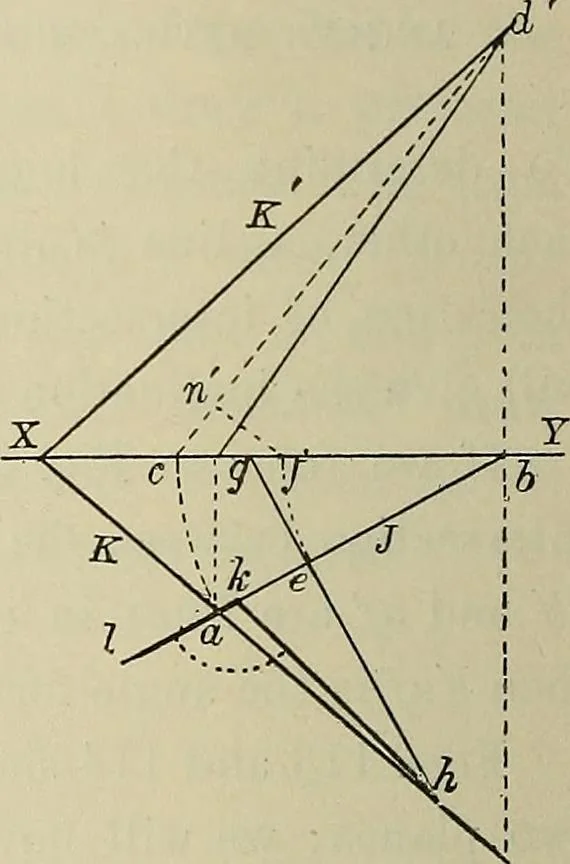

Fig. 125. Fio;. 126. Peoblem 96. To determine the angle hetween a -plane J inclined to the V.P. andpeiyendicidar to the H.P. and a ;plane K inclined to lothplanes of projection, their traces heing given. Fig. 126. Let K and K represent the traces of plane K, and J, cuttingXY in h, and K in a, the…
