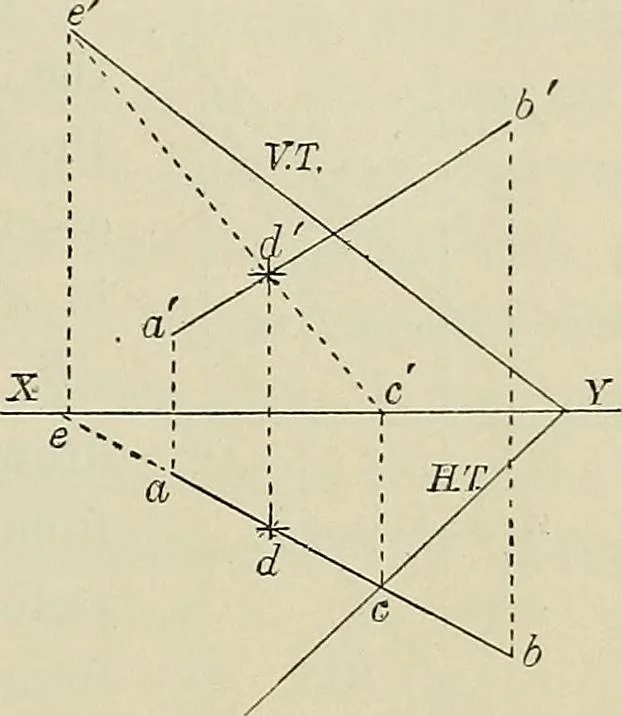

ind the intersection of a given line with a given plane, theline to he inclined to both co-ordinate planes. Fig. 132. Let H.T. and Y.T. represent thetraces of the plane, and at, ah, theprojections of the line. Assume a Y. plane containingthe given line, and find the projec-tions of line of… … Fig. 132. Problem 103. To find the traces of Oj plane perpendicular to a given line.Pis. 133.
