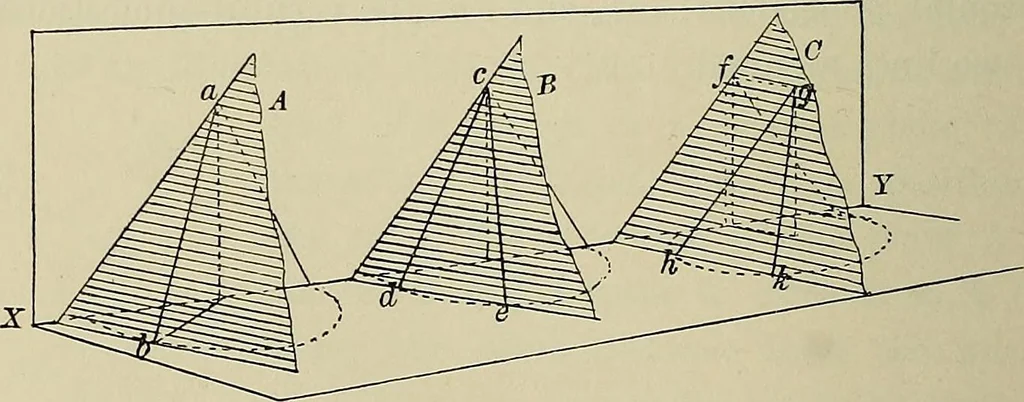

Fig. 138. CHAPTEE XXVII LINES CONTAINED BY PLANES AND MAKING GIVEN ANGLESWITH THE CO-ORDINATE PLANES The principles on which solutions of this combination of figuresare based will be more easily understood by reference to theperspective view (Fig. 139). A, B, and C represent planes inclined to both… … Fig. 139. point in this line. If now a perpendicular be let fall from a tillit meets the H.P., and a right-angled triangle with an angle Q atits base sweep out a semi-cone round this perpendicular line asan axis, the base of this semi-cone will intersect the plane A,provided the angle Q be not…
