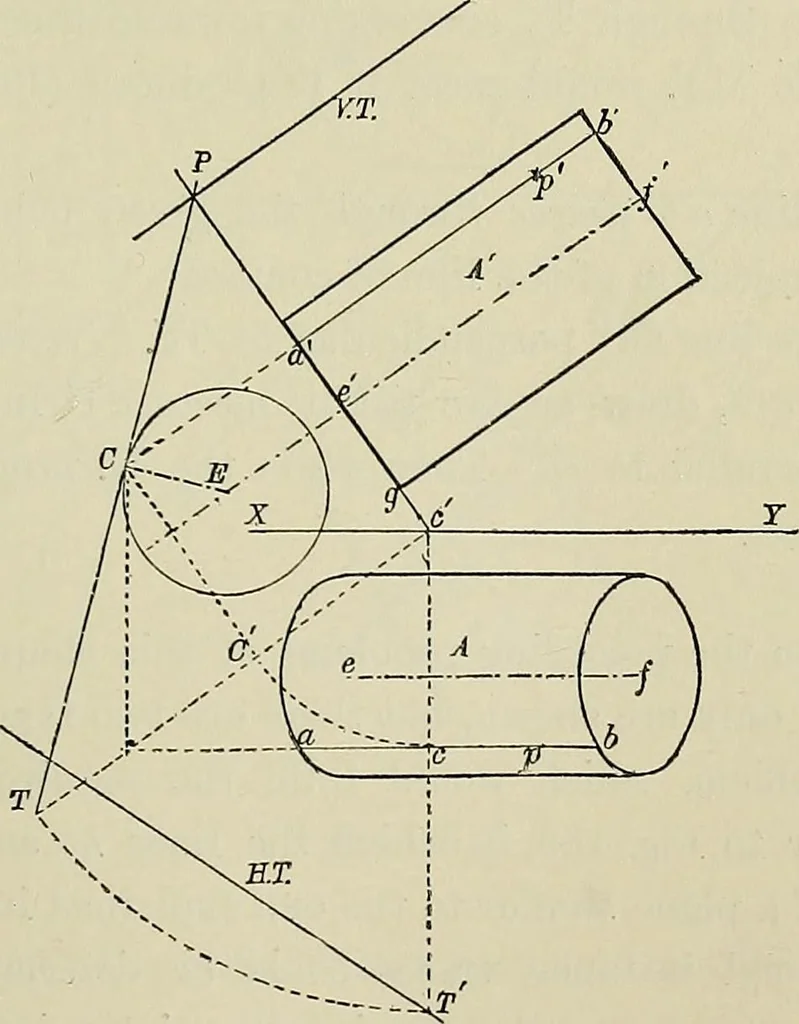

it meets cP in C.With c as centre, and radius cC, draw an arc till it meets cP in(, Through c draw ab parallel to XY. This is the V. pro-jection of the line of contact. Problem 142. To determine the traces and line of contact of a T.P. to a givencylinder inclined, to the H.P., hut parallel to the… … Fig. 172. Construct an end elevation, assuming a line drawn throughgci to be the edge of the V.P. 372 SOLID GEOMETRY chap. Draw the projections of the axis, cf and cf. Produce cf,and make cE equal to the distance of ef from XY. With E ascentre, and radius equal to eg, draw a circle. This is the…
