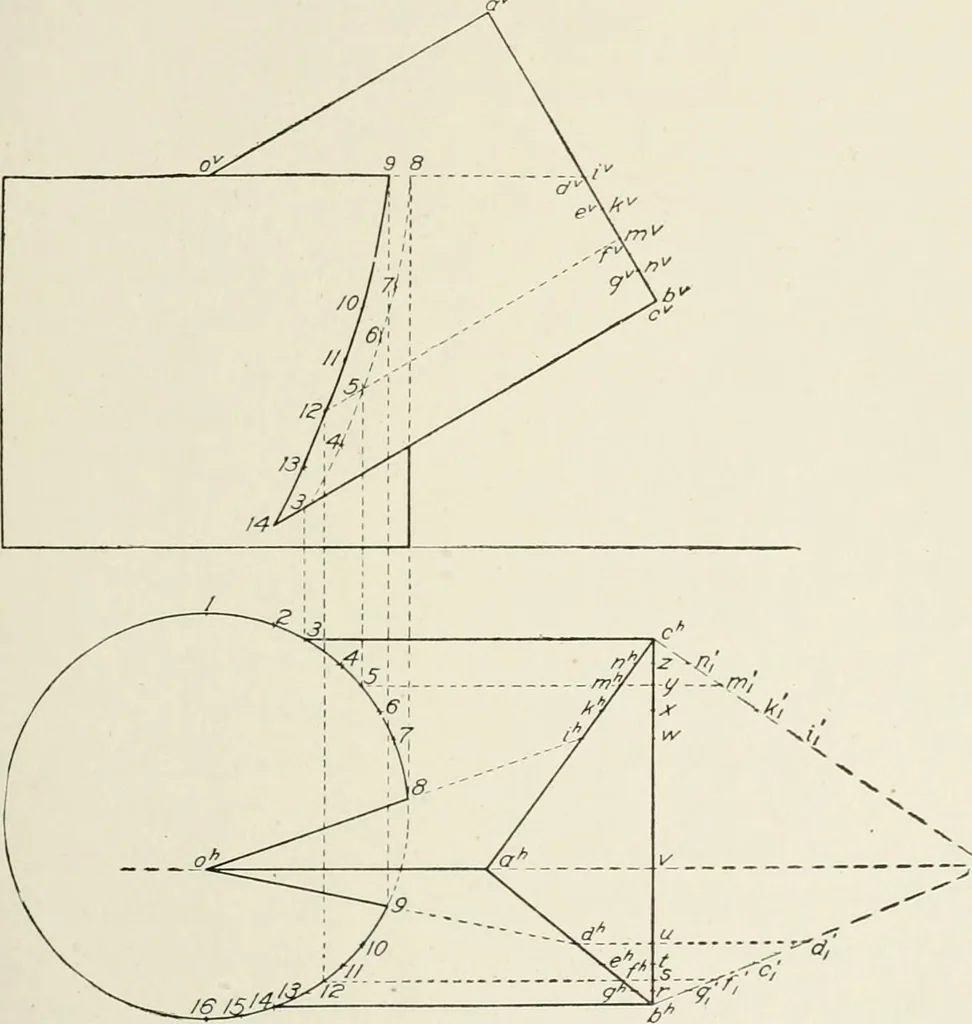

a cylinder and prism is found by obtaining the pointswhere elements of the cylinder pierce the prism, or where edges andlines parallel to edges on the surface of the prism cut the cylinder. A series of parallel planes may also be taken cutting curvesfrom the cylinder and straight lines from the… … Fis. 140. Plan and Elevation of Intersection of Cylinder and Triangular Prism with the size and shape of the base, this is laid off at a/ b c, andthe altitude of the triangle is taken and laid off at ci c^ in elevation,making right angles with the inclination of the axis to H. Theplan of the prism…
