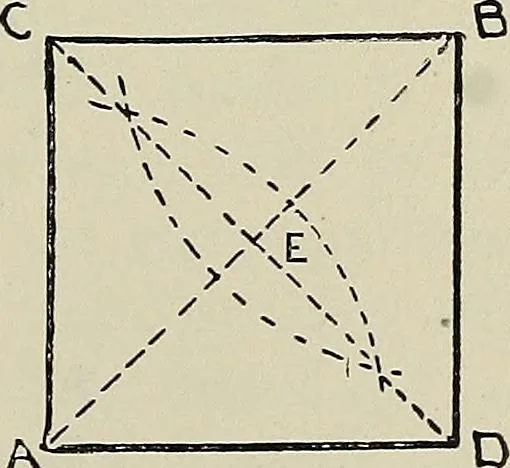

Fig. 61. Problem 26. To construct a square on a givenhase AB. At point A erect a perpendicu-lar to AB and equal to it. WithB and C as centres, and radius equalto AB, draw intersecting arcs meet-B ing at D ; join DC and DB. CABD is the square required. Problem 27. To construct a square on a… … 26 PRACTICAL PLANE GEOMETRY Peoblem 28. To construct a rectangle with sides cqiial to given lines A and B. Draw the line CD equal to given line A. At D erect aperpendicular DF equal to given line B. With C as centre
