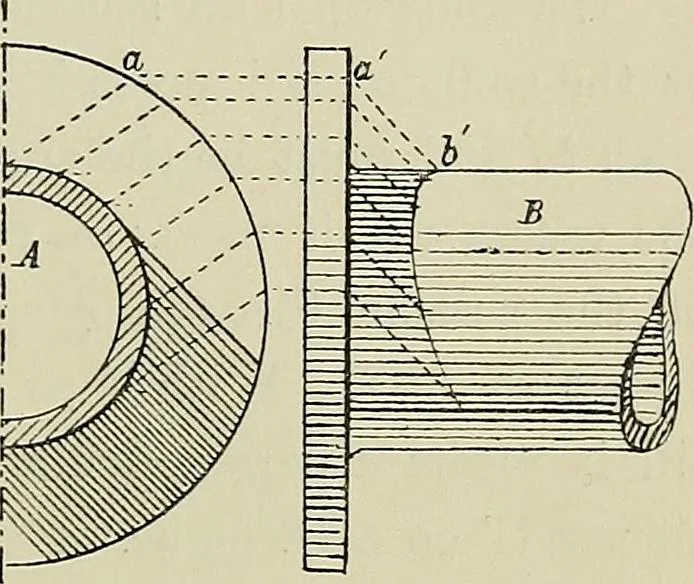

cylinder. Fio-. 246. In this instance the side elevation A answers the samepurpose as the plans in the pre-ceding examples. Any number of points may jLbe taken in the circle formingthe flange. We will take onepoint as an illustration, a forinstance. Draw the line ctb withthe 6 set - square. Draw…
