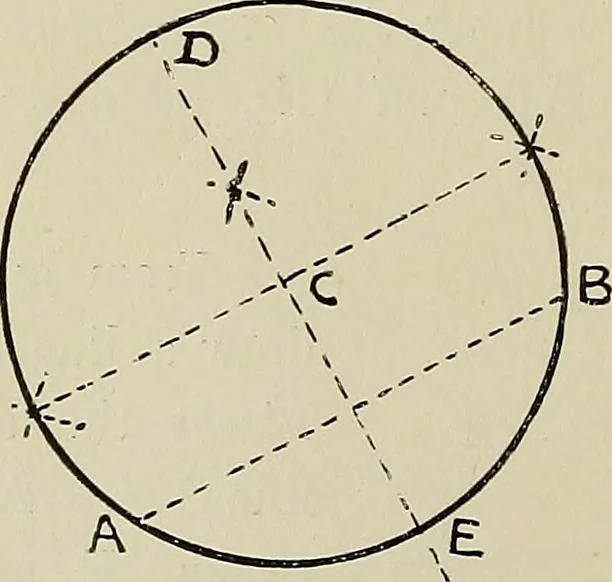

Fig. 67. to FA, and at K draw the line KL parallel to GA, cuttingeach other at L. Draw a line through L and A; AL is theconvergent line required. Peoblem 33. To find the centre of a circle.Draw any chord AB, and bisect it by a perpendicular DE, … Fig. 68. which will be a diameter of the circle. Bisect DE in C,which will be the centre of the circle. CONVERGENT LINES ; CIRCLES AND ARCS 29
