Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 496

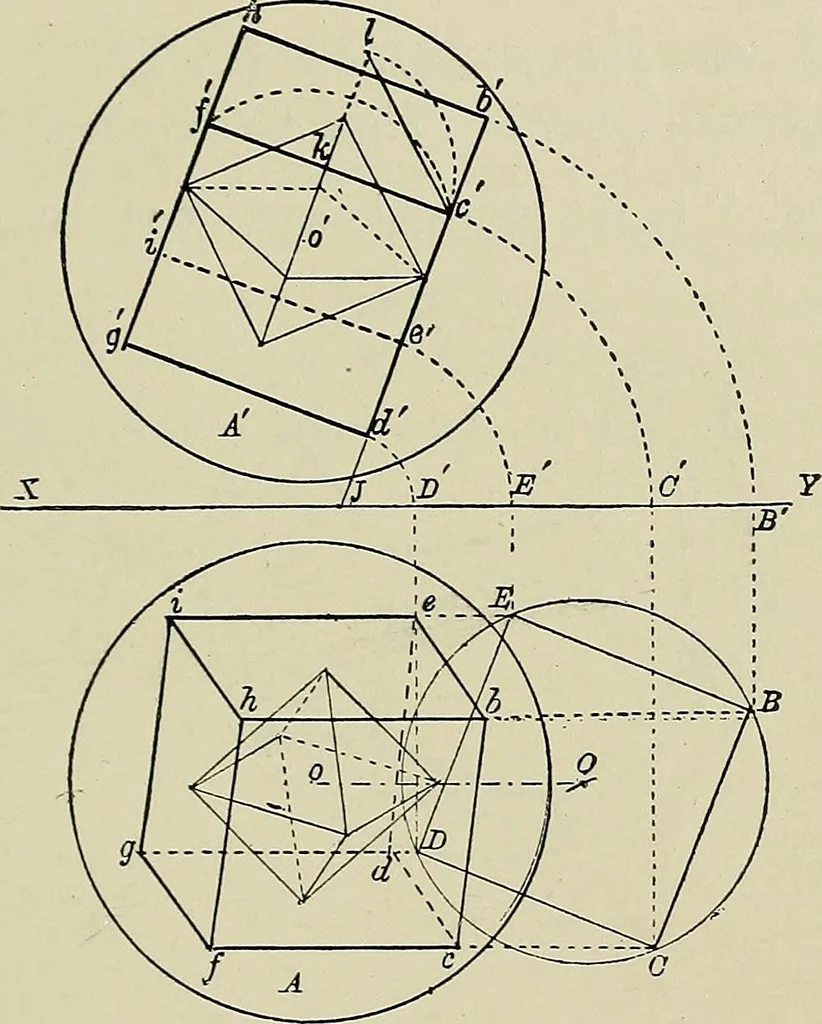

draw an arc till it meets XY in C. Draw a projectorfrom C till it meets a horizontal line from c in C. INSCRIBED SOLIDS 475 ISText determine the radius of a circle that will inscribe in asquare with edges equcil to /V, in the following manner :—Bisectfc in /v. With k as centre, and radius Tec, draw… … Fig. 271. circle. Mark off round this circle, commencing at 0, with fc asdistance, B, E, and D, and join them to complete a suprplementaryelevation of the square. Draw projectors from the corners ofthis square till they meet XY in the points B, E, and D. WithJ as centre, and each of these points in…
Geometrical drawing
