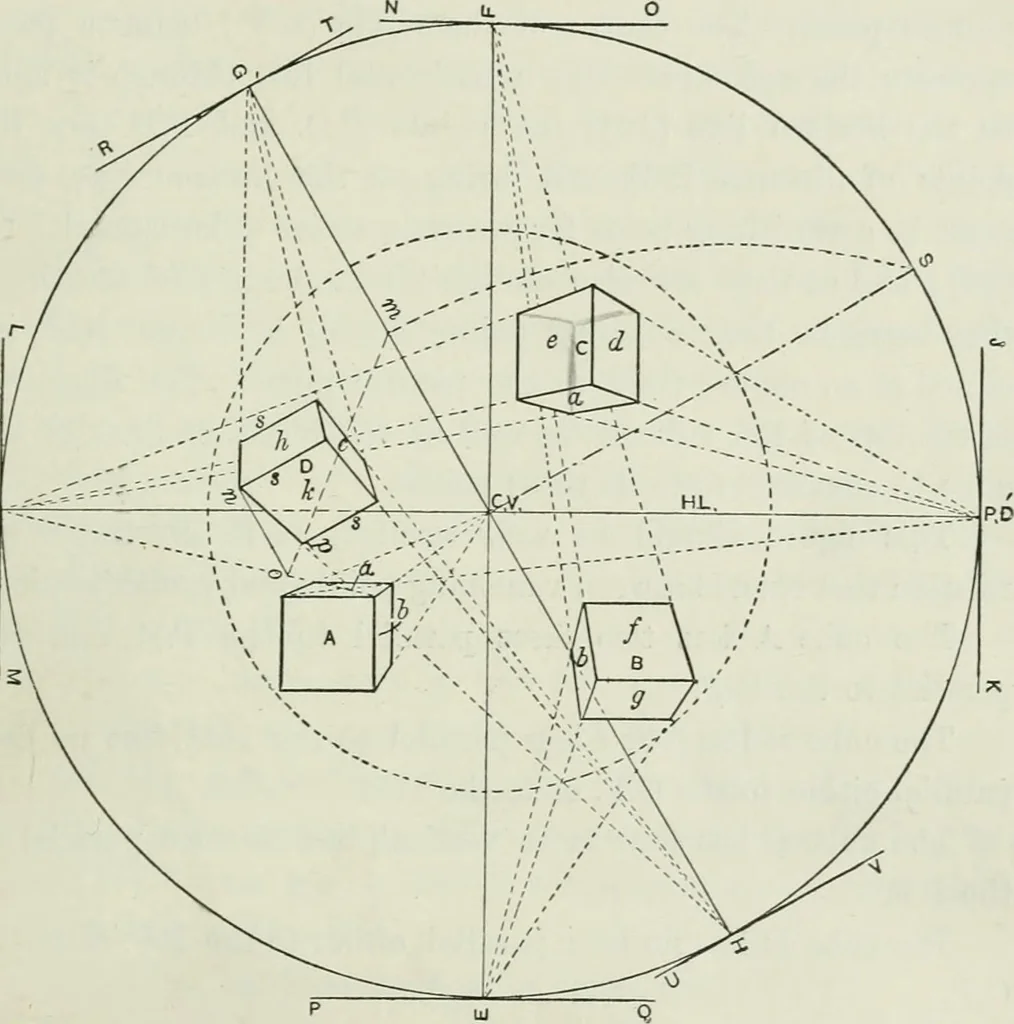

CH. IX PERSI^ECTIVE FOR SCIENCE AND ART STUDENTS 143 tri,r, and since, evidently, Sa will make a constant angle of 45°with the picture plane at every point of its rotation round theaxis SC, so every point, as h and d in the circumference of thecircle forminji the base of the cone, is a vanishing… … Fig. 110 at 45° with the picture plane [27]. The same principle appliesto every vanishing point, tlie centre of vision excepted. 53. It will be seen from this Fig. (109) that a line at anyangle with the picture or ground planes may be contained bya plane at right angles to the picture plane,…
