Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 508

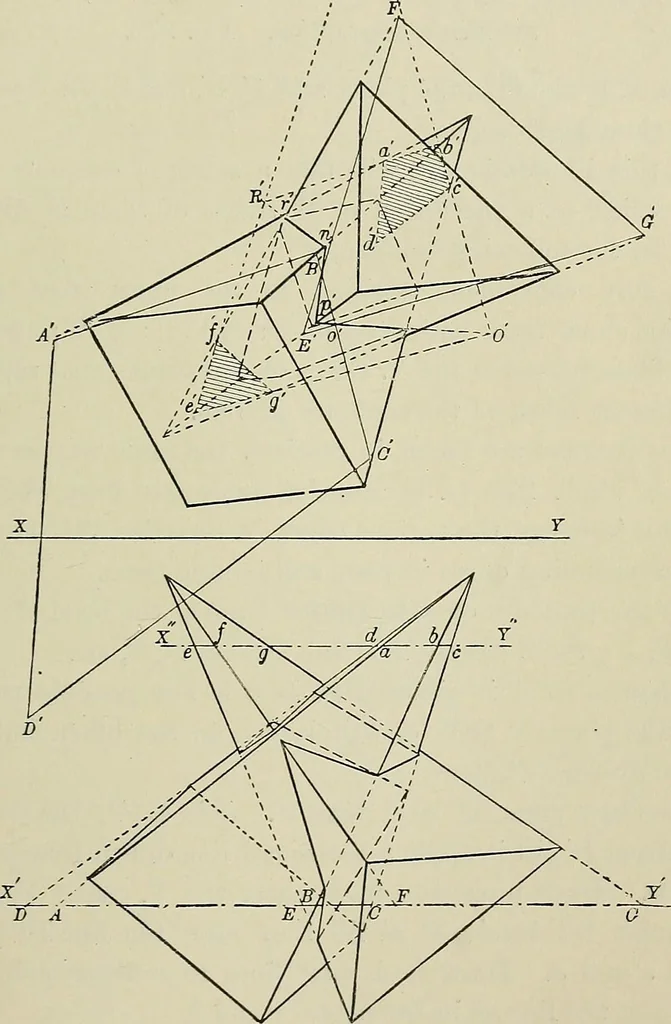

other lines required can be determined by findingtheir V. traces in the same manner : that is, by producing theY. traces of the sides of the pyramids containing the line tillthey meet, as described for the H. traces in the precedingproblem; e.g. the line pn is contained by the sides CB andET, the… … Fig. 277. The points of the line of interpenetration on plan are deter-mined by drawing projectors from the points in elevation till 488 SOLID GEOMETRY chap. they meet the corresponding edges of the solids on plan. Jointhem to complete the drawing. Problem 228. The projections of a group of three…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
