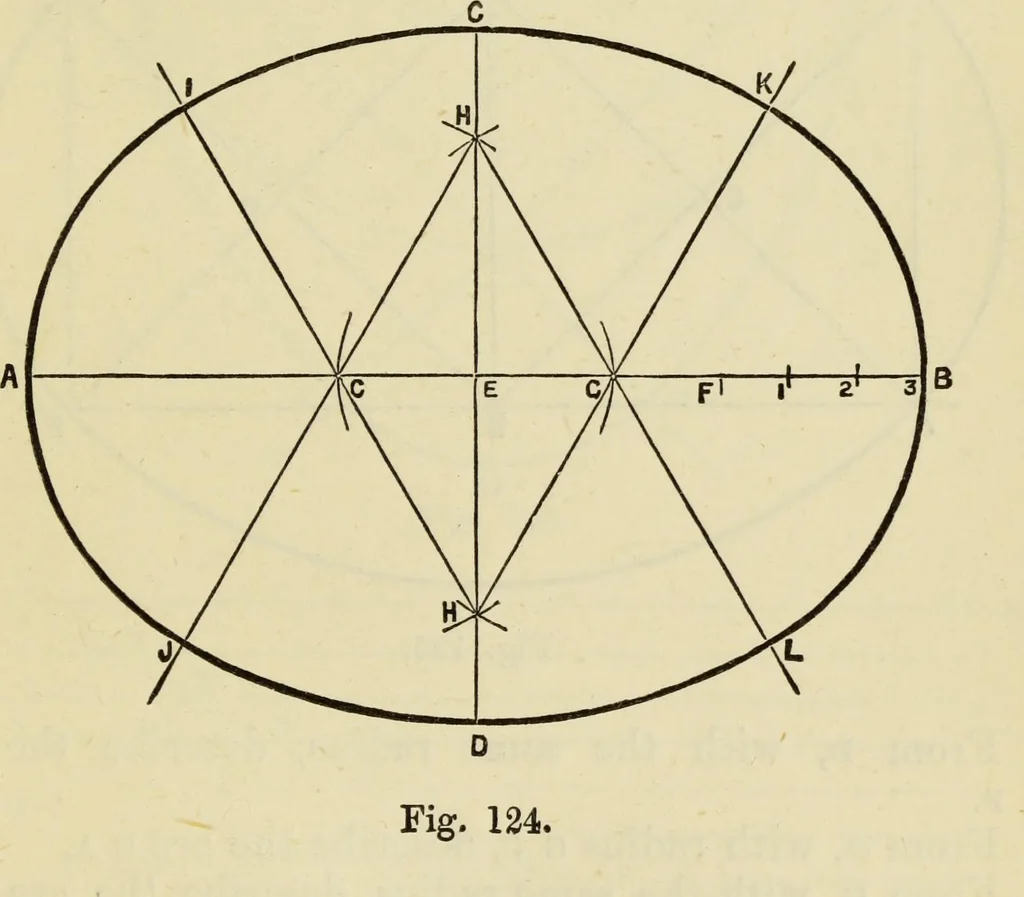

cut the circles in h, i, J, and k. From f and g, with radius f k or g i, draw arcsuniting h with i, and J with k, which will completethe figure. THE CONSTRUCTION OF GEOMETRICAL FIGURES. 315 Fig. 124. To CONSTRUCT AN ELLIPTICAL FIGUEE BY MEANS OF ARCS OF CIRCLES. Place the two given diameters, A b… … From G, G, with radius g, g, describe arcs cuttingeach other in h, h. From H, H, draw lines through g, g, and producethem. From H, H, with radius h c, or h d, describearcs meeting the lines drawn from h, h, in i, j,and L. From G and g, with radius g b, describe arcs meet-ing the points i, J, k, l,…
