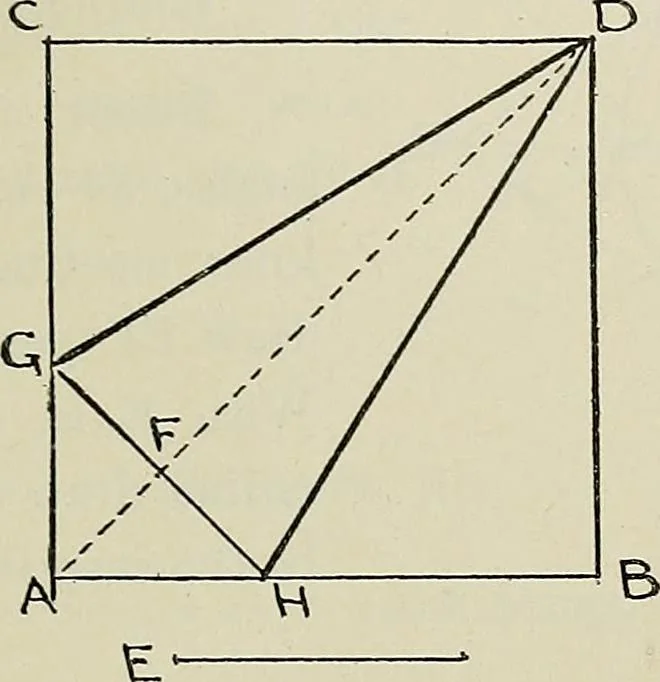

INSCRIBED AND DESCRIBED FIGURES 49 Peoblem 63. To inscribe an isosceles triangle in a given sqiiare ABCD, havinga hase equal to the given line E. Draw the diagonal AD. From A, along AD, set off AF … Fig. 119. equal to half the given base E. Through F draw the line GHperpendicular to AD (Prob. 5). Join GD and HD.GDH is the inscribed isosceles triangle required. Problem 64. To inscribe a square in a given trapeziiim ABCD which hasits adjacent 2JC(i^s of sides equcd. Draw the two diagonals ABand…
