Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 78

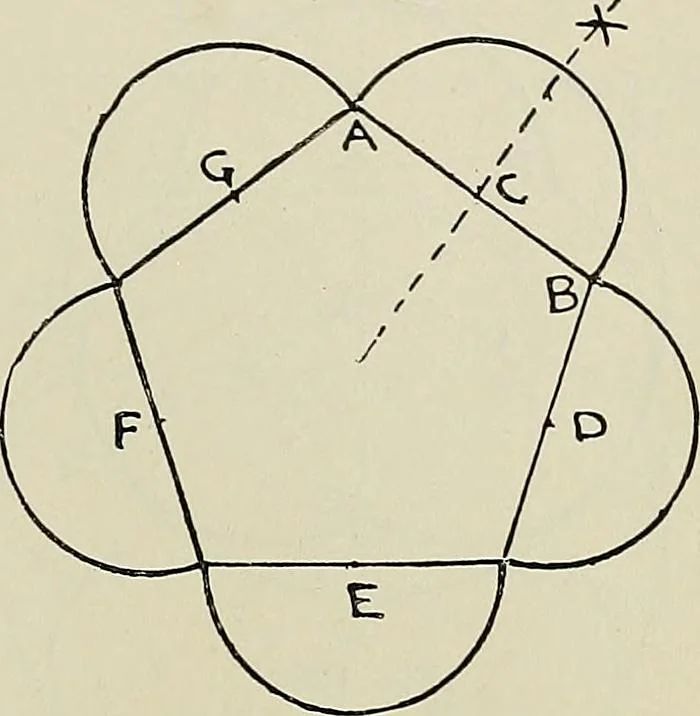

, and AC as radius, drawthe six arcs, as required. FOILED FIGURES 57 Problem 79. To construct a foiled figure ahout any o^egular polygon havingadjacent diameters. For example, a pentagon. THE CINQUEFOIL. Bisect each side of the pen-tagon (Prob. 1) in the pointsO, D, E, F, and G. With each ofthese… … Fig. 134. Peoblem 80. THE TREFOIL. In a given equilateral triangle ABC, to inscribe a trefoil. Bisect the angles CAB and ABC by lines produced till they meet the sides of thetriangle in D and E (Prob. 13).From C, through centre L, drawthe line CF. Join DE, EF, andFD. From G draw GI perpen-dicular…
Geometrical drawing
