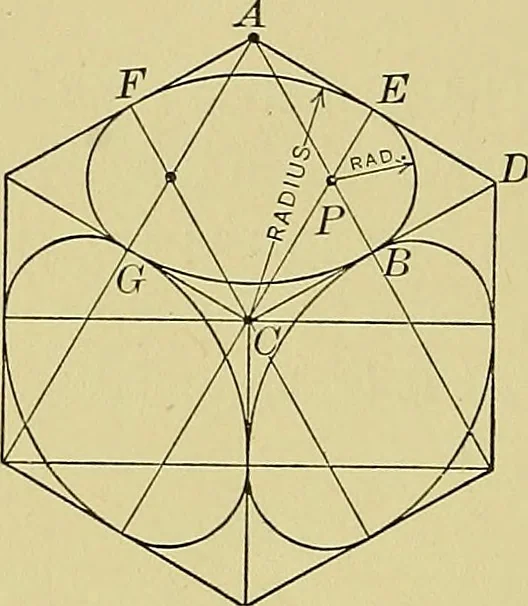

and E-C, which are drawn directly fromA and C with the 30-60 degree triangle.With C as a center and C-E as a radiusdescribe the arc E-F. With J. as acenter and with C~E as a radius describethe arc G-B. With the intersectionpoint P of the lines A-B and C-E as a center and with P-E asa radius… … Fig. 125. — Approximate Methodof Drawing an Isometric of aCircle. 122. Isometric Drawing of a Plane Figure Composed ofStraight and CurvedLines. Assume that anyplane outline as shownin Fig. 126 (a) is to be
