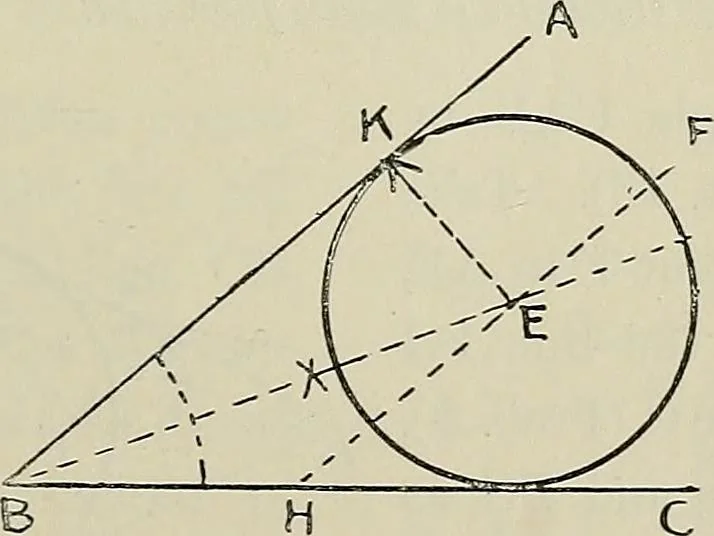

erect perpendicular to AB cutting the arc in D. Join AD.Make the angle DAE equal to DAC. Then EA produced isthe tangent required. Problem 87. To clravj a given circle ivith radius egiial to line 1) to touch ticostraight lines forming a given angle ABC. … D Fig. 151. Bisect the angle ABC by the line BE. Draw the line FH 64 PRACTICAL PLANE GEOMETRY parallel to BA (Prob. 4), and at a distance equal to given line Dfrom it. Where FH intersects BE will be the centre of thecircle. From E draw the line EK perpendicular to BA. WithE as centre, and EK as…
