Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 85

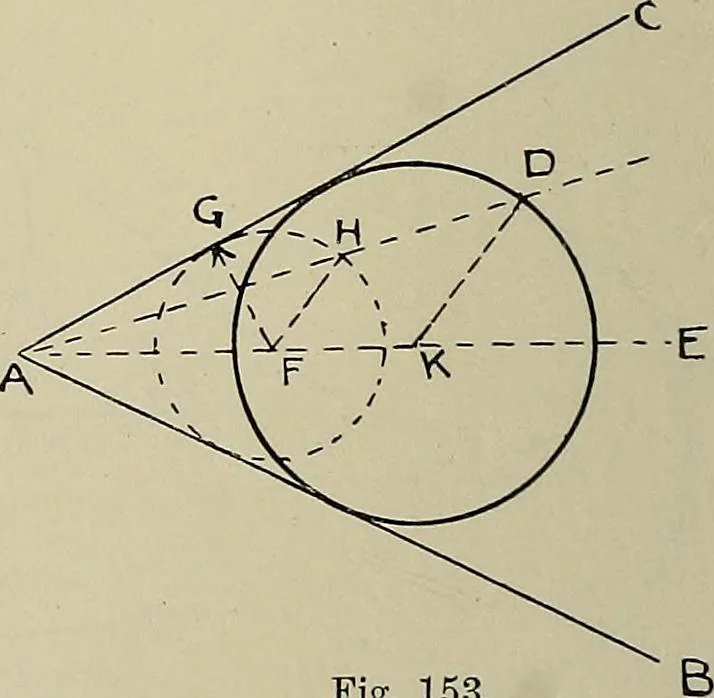

cumference in L and M. Join^ AL and AM, which will be the tan-gents required. Problem 89. In a given angle CAB, to inscribe a circle ivhich shall passthrough a given point D. Bisect the angle CAB bythe line AE (Prob. 13). Takeany convenient point F in AE,and from F draw the line FGperpendicular to… … Fig. 153. TANGENTS AND TANGENTIAL ARCS 65 Problem 90. To draw a circle which shall pass through the given poi7it Aand touch a given line BC in D. At the given point D erect the line DE perpendicular to
Geometrical drawing
