Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 49

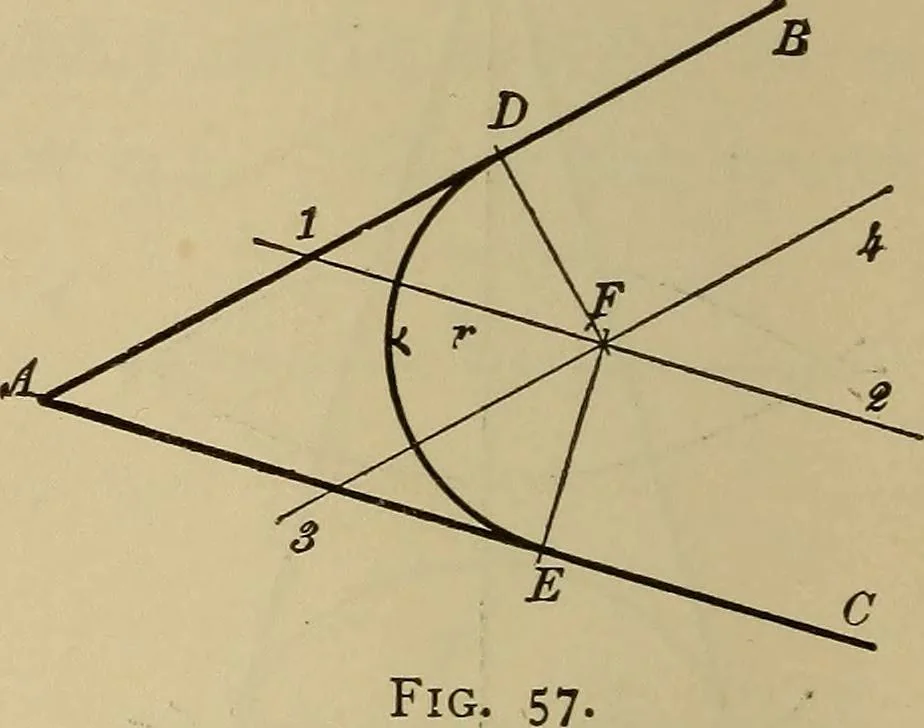

Fig. 56. scribe a circle GF. From B draw the tangents BF and BGyby Prob. 37. Draw AF and ^4£ extended to E and //.Through ii and H draw i:C and HD parallel to BF and BGrespectively. EC and Z?77 are the tangents required. ^ I?; To Draw an Arc of a Circle of GivenRadius Tangent to two Straight…
