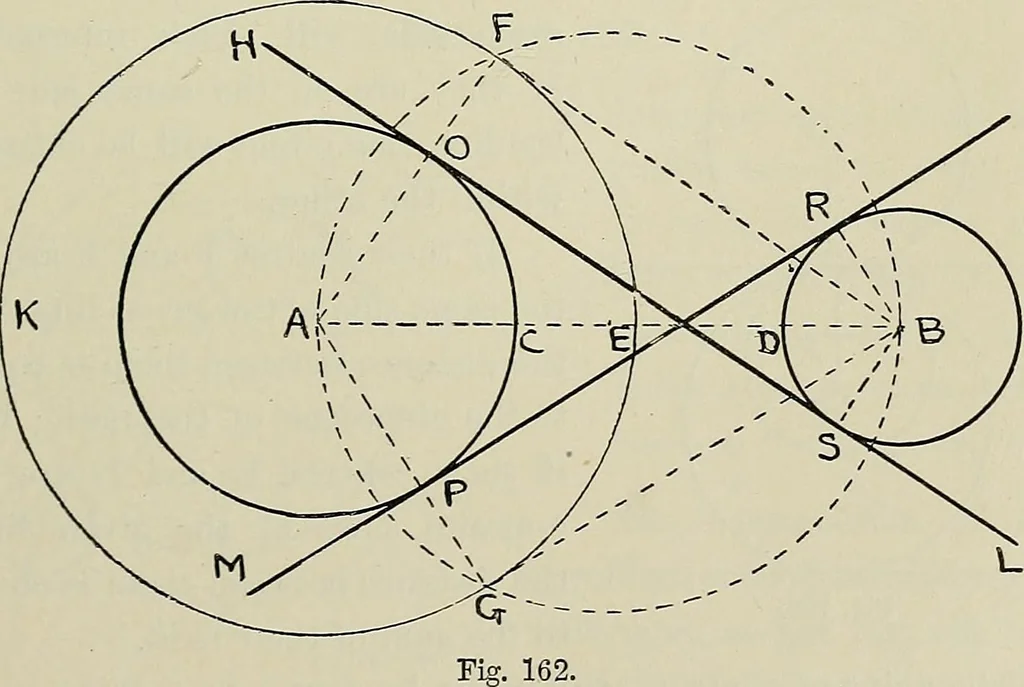

Fig. 161. Peoblem 98, To draio tkansveese common tangents to tioo givencircles of unequal radii. Let A and B be the centres of the given circles, and AC and … BD their radii. Join AB. With A as centre, and a radius = AC 70 PRACTICAL PLANE GEOMETRY + BD, draw a circle. Bisect the line AB in E (Prob. 1). WithE as centre, and a radius equal to EA, draw a circle cutting thecircle FKG in the points F and G. Join AF and AG, cuttingthe given circle PCO in 0 and…
