Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 93

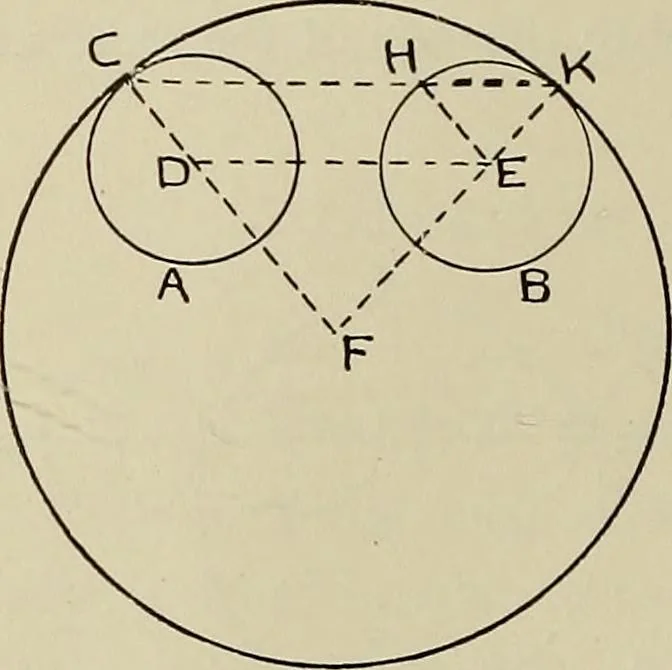

erence being the wordsgiven arc instead of given line. 72 PRACTICAL PLANE GEOMETRY Problem 102. To describe a circle tangential to and including two giveneqncd circles A and B, and toiicliing one of them in a given2Joint C Find tlie centres of the twogiven circles D and E, and jointhem (Prob. 33).… … Problem 103. To describe a circle tangenticd to and including two unegualgiven circles A and B, and touching one of them in a givenpoint C. Pind the centres D and E.Join CE. Cut off from CE, CHequal in length to the radius ofthe smaller circle. Join DH.Produce CE. At D constructthe angle HDP equal…
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
