Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 94

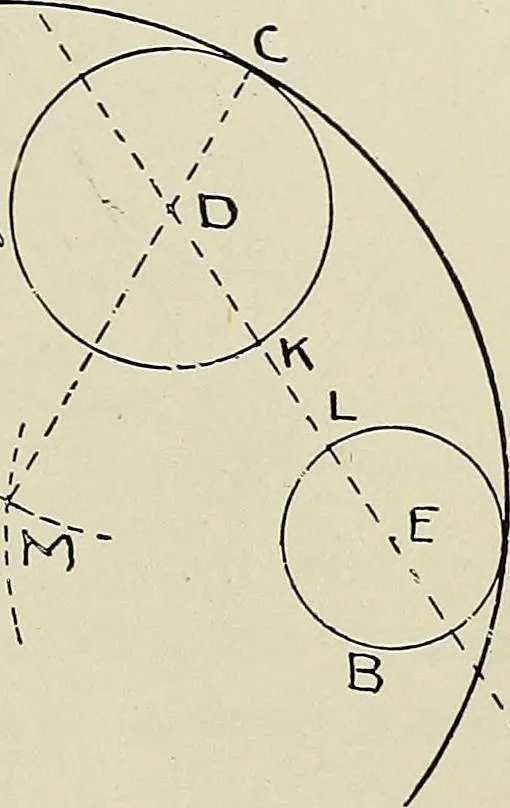

hrough ^pthem indefinitely cutting the circlesin K and L in both directions. Promthe points Iv and L on this line, setoff KF and LH equal to the radius /^of tbe required arc, viz. 1\ inches.Witb D as centre, and a radius equalto DP, draw an arc at M ; and withE as centre, and EH as radius, drawan…
Geometrical drawing
