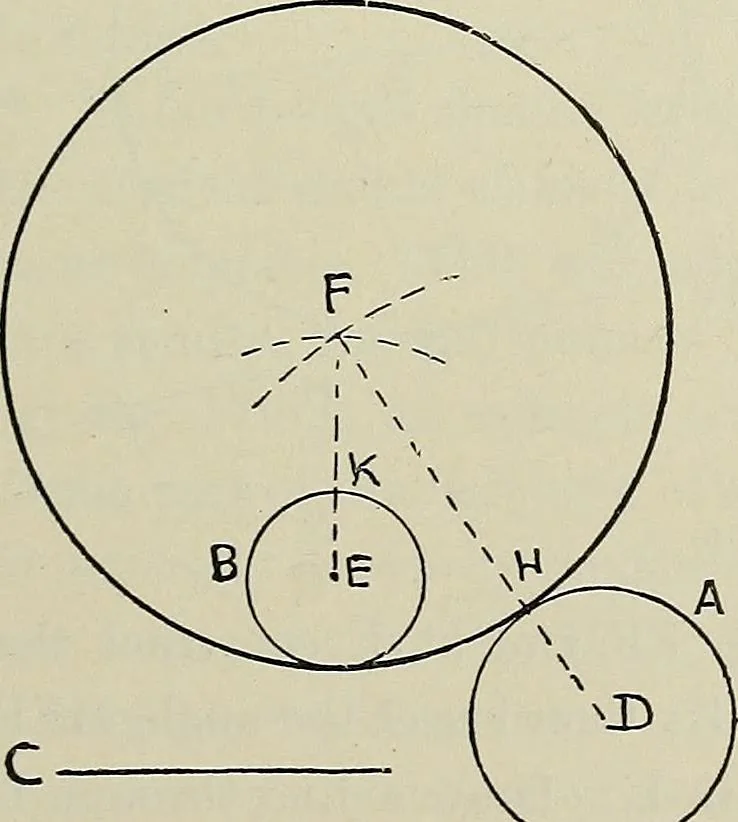

- C, de-scribe an arc at E; and with Eas centre, and the difference-radius, i.e. C — EK, draw anotherarc cutting the other at pointE. Join ED and EE. With Eas centre, and EH as radius,draw the circle required. Fig. 173. … -jd PRACTICAL PLANE GEOMETRY chap. Peoblem 110. To draxo a circle of f of an inch o^cidius tangential to thegiven line AB and the given circle CDE. Note.—The circle must be less than | inches from the line. Draw the line KL parallel to AB, and f of an inch from it. Find the centre F of the given…
