Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 97

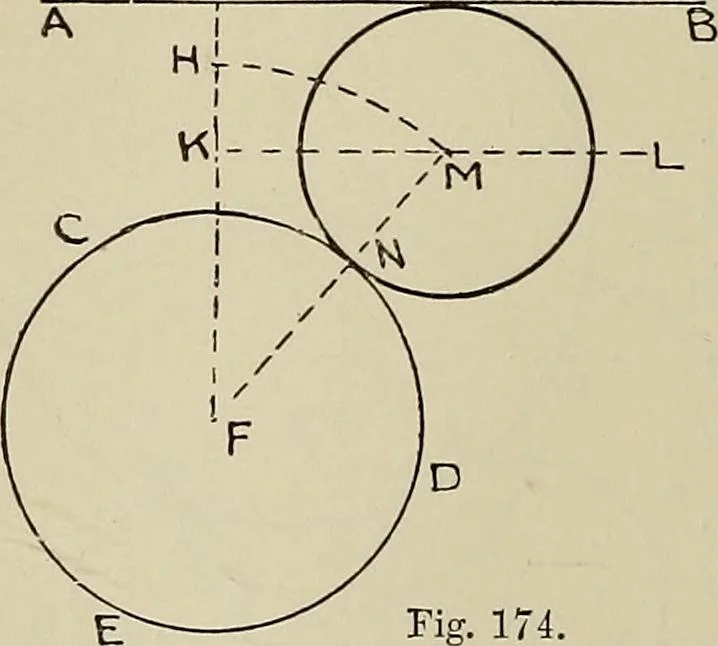

circle must be less than | inches from the line. Draw the line KL parallel to AB, and f of an inch from it. Find the centre F of the given circle (Prob. 33), and with the sum-radius of the two circles draw the arc HM cutting KL in M. Join FM. With M as centre, and MIST as radius, draw the required… … A o
Geometrical drawing
