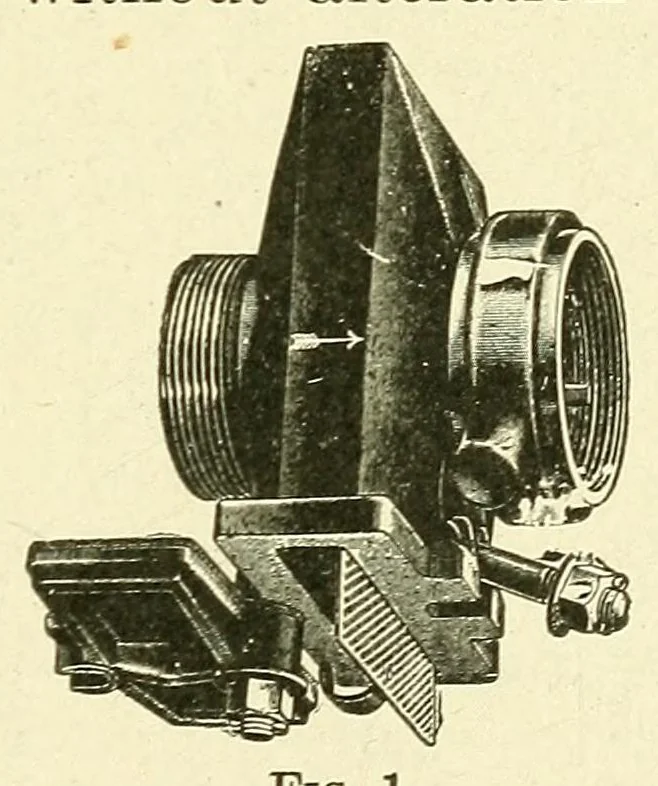

LOCOMOTIVE FEED-WATER STRAINERS. THE SELLERS' STRAINER. The Sellers' strainer, herewith illustrated, from long continued service has shown many special advantages to recommend it. The strainer has standard pipe and hose connec- tions, and is coupled directly to the end of the injector suction pipe.… … Fig. 1. View of Strainer from Under Side Showing Straining Plat* Partially R-emoved. the hose or of the pipe. The metal straining plate is of large area, and is provided with holes so small that fine particles, which pass through the ordinary strainer, are excluded from the injector; the dirt trap…
