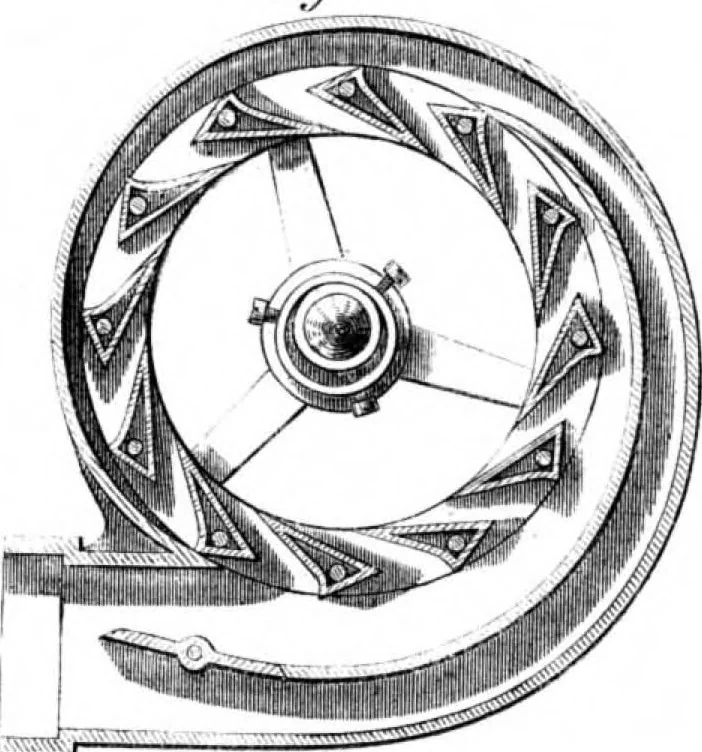

e extreme leverage of thewheel, and that thereby its power is much increased over that of other forms of turbines. Patented, through the Scientific AmericanPatent Agency, May 25, 1869. Further informa SNYDEBS IMPKOVED TURBINE WHEEL. This invention consists in a peculiar form and constructionof the… … It will be seen that the general form of the buckets is thatof a triangular prism, the most acute angle of the trianglebeing toward the interior of the wheel. The wheel is of the kind known as center discharge, andthe water is earned to the buckets by a scroll, which scroll isdivided by a…
