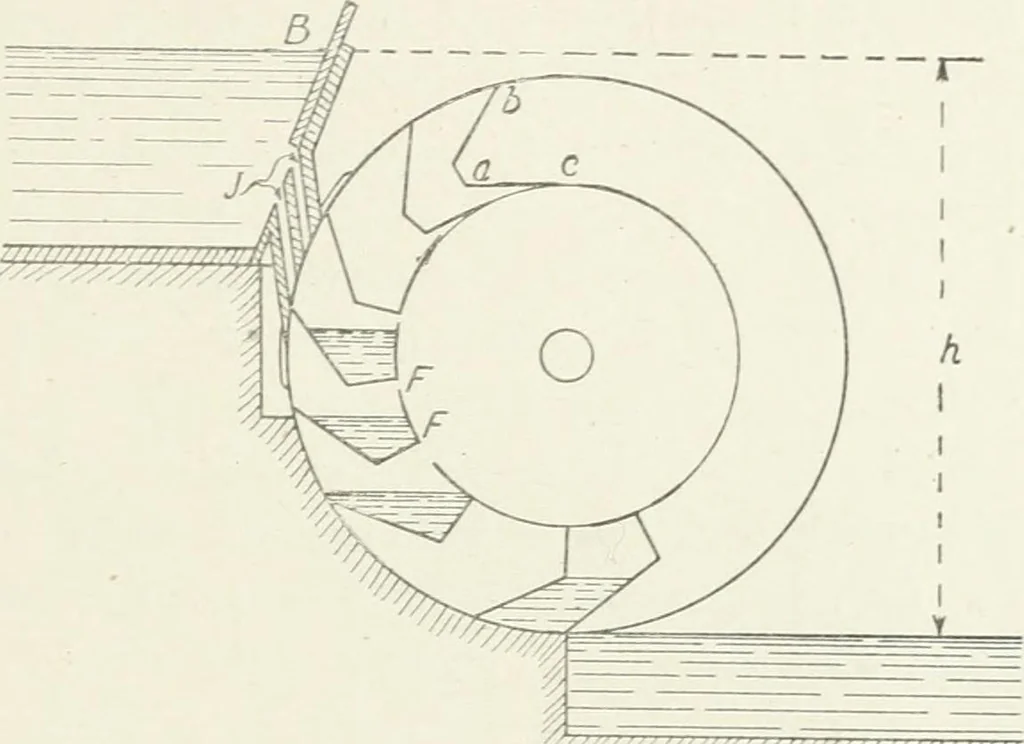

rough the distance h^, whichis approximately equal to Ji — /;„; finally it escapes at the level of thetail-race with thevelocity v, or thevelocity of the cir-cumference of thewheel. The rea-soning in the ar-ticle on overshotwheels may be ap-plied to this case,by making the fall7ij equal to zero,and… … Fig. 31. %^////.-^^y/:V////y>/////////V/y/// Breast Wheel with Supply Controlled byShuttle Gate. The maximum efficiency is theoretically: h.. r(Max.) = 1-i (64) (65) (66) The maximum work is theoretically: Work (Max.) = W (h-Vio) Practically, the coefficient of velocity of the entrance…
