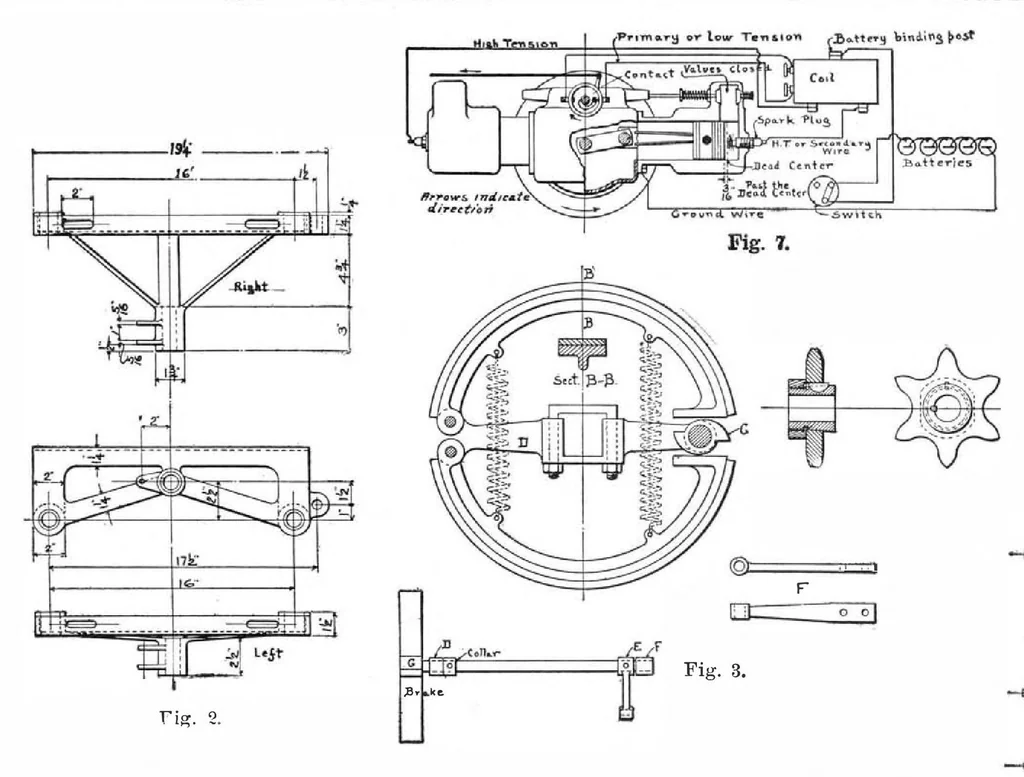

Scientific American January i6, 1909. 53 … 'i * '£•* 4- <*«&/• /row 2^ DETAILS OF HOTOB BUGGY PABTS. Fig. 1.—Angle iron frame with wood spring bars. "Fig. 2.—Plan and elevation of engine hangers. Fig. 3.—Expanding brake sleeves and operating rod. Fig. 4.—Plan and end view of fuel tank. Figs. 6 and 6.—Plan and side view of radius rods. Fig.…
